Coriolis mass flowmeter

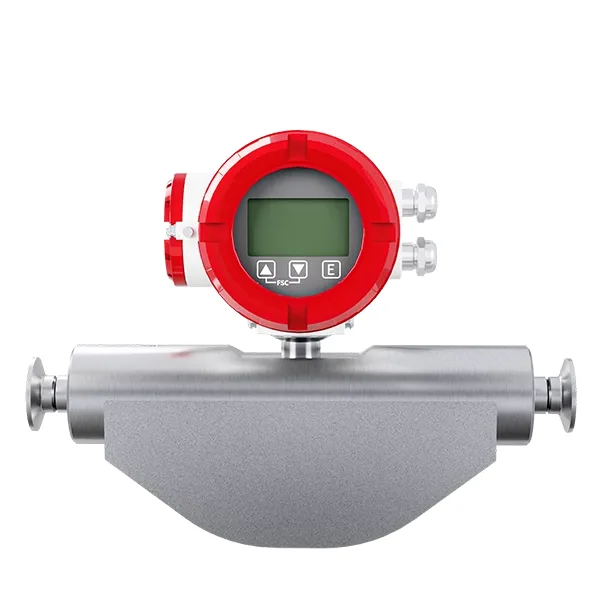

AZIC900-501 Liquids and Gas Coriolis Mass Flow Meter is a robust, high-precision instrument designed for the simultaneous measurement of mass flow, density, and temperature in closed pipeline systems.

Utilizing the Coriolis principle, it delivers direct and reliable data for a wide range of media, including liquids, gases, and high-viscosity slurries, without the need for external compensation.

Characteristics

3-in-1 Measurement: Simultaneously monitors mass flow, medium density, and process temperature from a single device.

Marine-Grade Robustness: Features an IP67-rated enclosure designed to withstand heavy vibrations, humidity, and harsh sea conditions (-40°C to 55°C operation).

Universal Media Compatibility: Accurate across a wide range of fluids, including high-viscosity slurries, gases, and suspensions.

Compact Installation: Requires zero upstream or downstream straight pipe runs, allowing for seamless integration into confined spaces common in shipboard systems.

Smart Integration: Equipped with standard 4—20mA, RS485 (Modbus), and HART interfaces for easy connection to modern PLC and DCS networks.

Introduction

AZIC900-501 Liquids and Gas Coriolis Mass Flow Meter is a high-precision instrumentation solution designed to deliver simultaneous measurements of mass flow, density, and temperature.

Engineered to withstand the rigorous demands of maritime and industrial environments, this device operates on the Coriolis principle to provide direct mass measurement without the need for external compensation.

Its robust construction and versatile design make it an essential tool for precise fluid management in sectors ranging from marine transport to chemical processing and pharmaceutical manufacturing.

Working principle

The AZIC900-501 Liquids and Gas Coriolis Mass Flow Meter operates by leveraging the Coriolis effect to achieve exceptional measurement accuracy:

Vibration Induction: The meter’s internal tubes are driven to oscillate at a resonant frequency by an exciter.

Coriolis Force Generation: As fluid flows through these vibrating tubes, it generates Coriolis forces that cause a phase shift or "twist" in the oscillation. The degree of this twist is directly proportional to the mass flow rate.

Signal Processing: High-sensitivity sensors detect these minute phase shifts. The onboard processor analyzes the data to calculate mass flow, density, and temperature in real-time, converting them into standard output signals for system integration.

Key features

Engineered to deliver precision where it matters most, the AZIC900-501 Liquids and Gas Coriolis Mass Flow Meter integrates the following capabilities to streamline your operations and ensure measurement confidence:

Multivariable Measurement: Capable of directly monitoring mass flow rates, medium density, and process temperature in a single unit, eliminating the need for multiple instruments.

Marine-Ready Durability: Built with an IP67 protection rating and high vibration resistance, ensuring reliable performance in harsh offshore and shipboard conditions.

High Precision: Offers flow accuracy options up to Level 0.15 and density precision of ±0.001g/cm³, suitable for custody transfer and critical dosing applications.

Universal Applicability: Effectively measures a wide variety of media, including liquids, gases, high-viscosity fluids, slurries, and suspensions.

Flexible Installation: The design allows for installation without strict requirements for upstream or downstream straight pipe runs, making it ideal for the confined spaces often found in marine vessels.

Advanced Connectivity: Features comprehensive output options including 4—20mA, Pulse, RS485 (Modbus-RTU), and HART protocol for seamless integration into PLC and DCS systems.

Specification
