【Product Description】

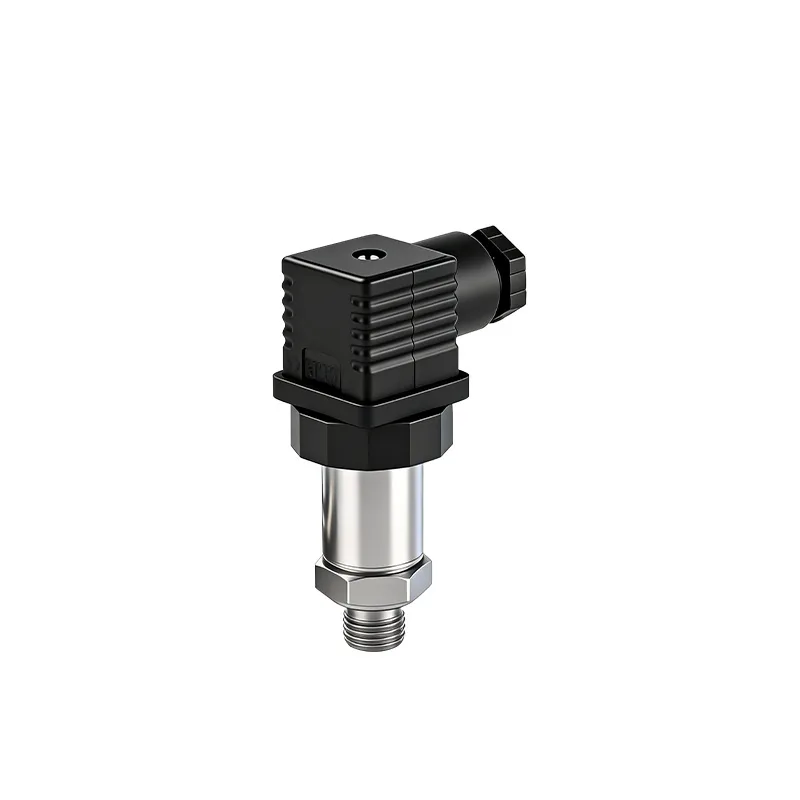

AZIC800-211B High Elasticity Ceramic Pressure Transmitter with corrosion resistance, wear resistance, strong vibration resistance, and excellent thermal stability. The developed sensor offers high output, a wide measurement range, and an exquisite product appearance.

It is widely used in numerous fields, including process control, environmental control, hydraulic and pneumatic equipment, servo valves and rotation systems, air compressors, refrigeration, water treatment, and industrial control.

【Features】

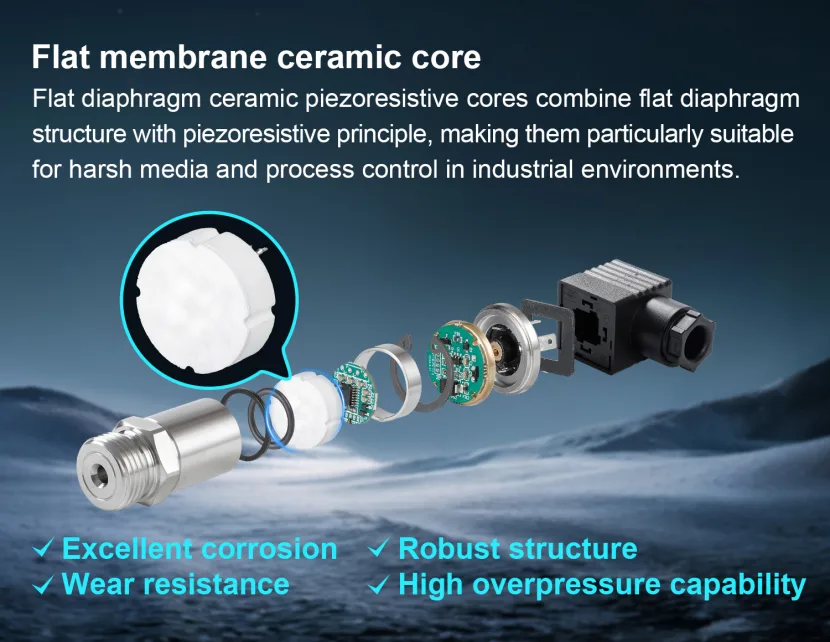

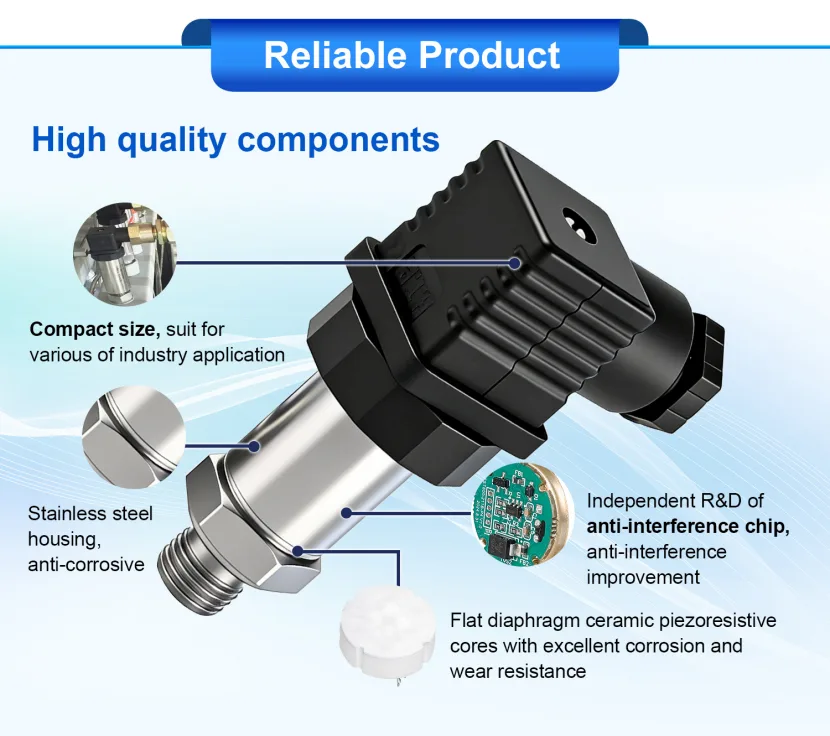

● Robust ceramic sensitive diaphragm;

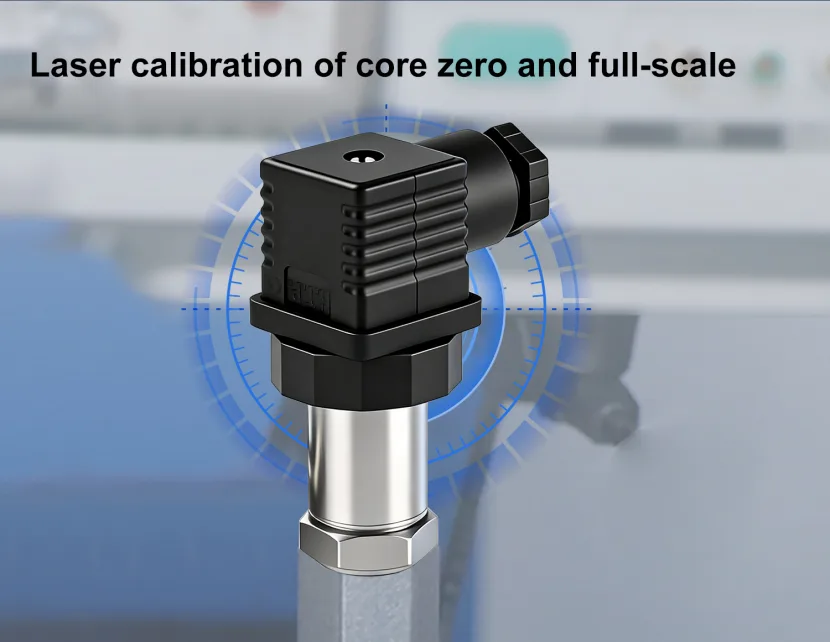

● Laser calibration of core zero and full-scale;

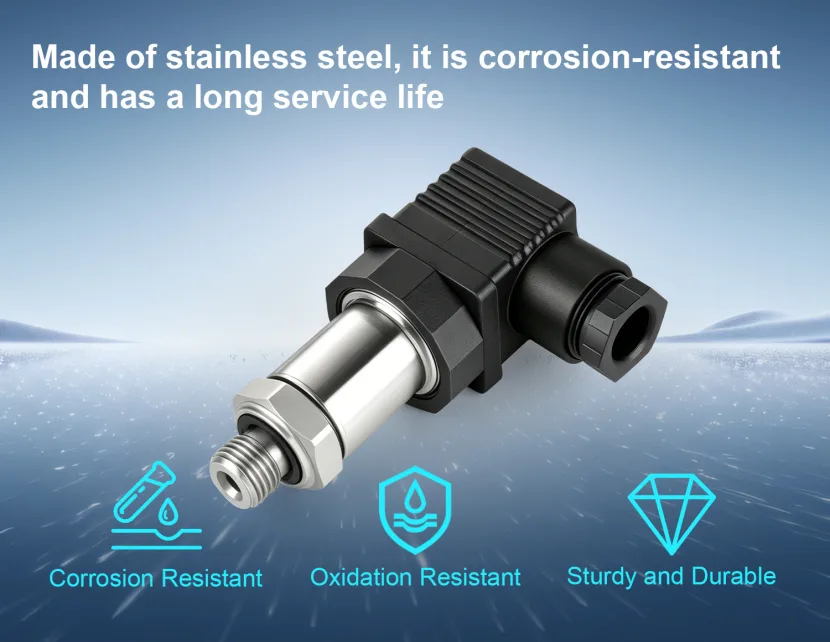

● Excellent resistance to corrosion, wearvibration, and high stability.

● Wide operating temperature range andcompact size.

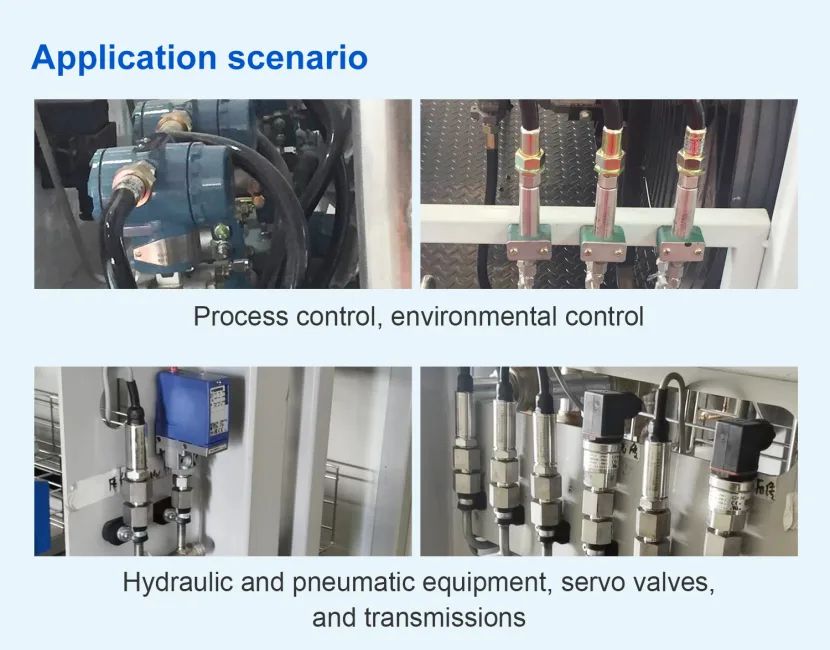

【Applications】

● Process control,environmental control.
● Hydraulic and pneumatic equipment, servo valves, and transmissions.
● Air compressors, refrigeration, and water treatment industries.
● Chemicals, chemical industry, medical instrumentation, and many other fields.

【Specifications】

Measurement range	0~10...60Bar (Gauge Pressure) or customized
Output signal	4~20mA，0~5VDC，RS485	0~10VDC	0.5-4.5VDC
Supply voltage	9~30VDC	15~30VDC	5VDC
Accuracy	±0.5%FS
Operating temperature	-40℃~+85℃
Protection class	IP65
Pressure connection	G1/4，G1/2，M20*1.5，NPT1/4
