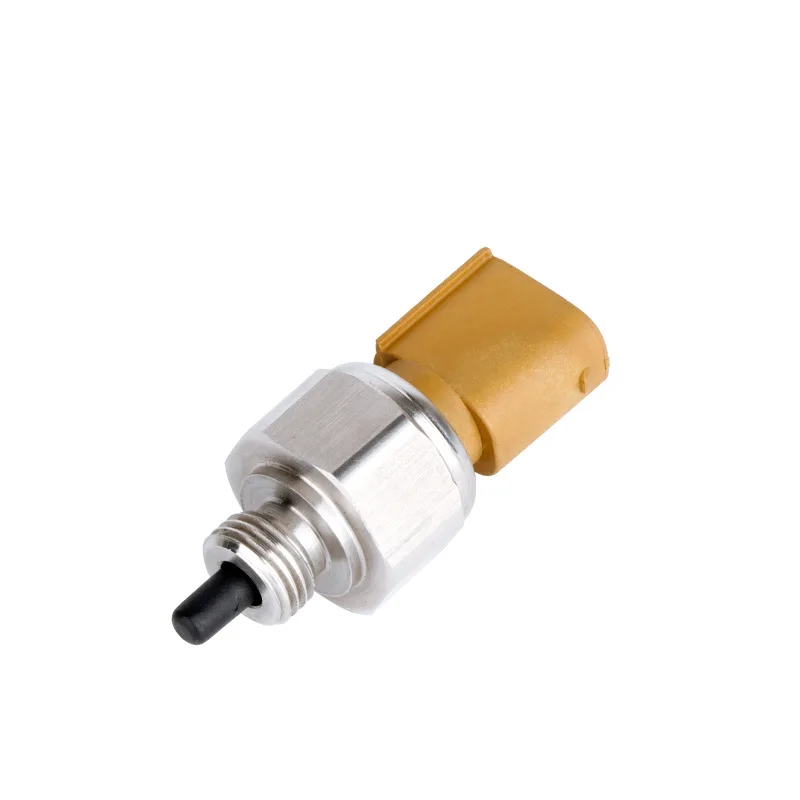

AZIC800-1700 Air Conditioner Temperature and Pressure Sensor is a pressure sensor with an integrated temperature sensitive element NTC.
【Product Description】
AZIC800-1700 Air Conditioner Temperature and Pressure Sensor is a pressure sensor with an integrated temperature sensitive element NTC. It is used to monitor the pressure and temperature of the refrigerant in the air conditioning pipeline. The sensor provides a proportional voltage signal corresponding to the pressure input and an NTC resistance value that changes with temperature. The sensor should not be used in media containing sulfur and water or water vapor as specified in this specification.
【Product Features】
● Easy installation, strong versatility
● Low voltage power supply, overvoltage protection
● Compact appearance, easy installation
● High elasticity, wear resistance, impact resistance, vibration resistance
【Technical Parameter】
|
Supply voltage |
5V DC(±5%) |
|
|
Working current |
<10mA |
|
|
Overvoltage protection |
<16V DC |
|
|
Temperature NTC resistance value |
10kΩ nominal |
|
|
Precision
|
Temperature |
±1.5℃（-10℃~80℃）
±3℃（-30℃~130℃） |
|
Pressure |
±2%F.S |
|
|
Measuring range
|
Temperature |
-30~130℃ |
|
Pressure |
101-1025KPaA |
|
|
Response time
|
Temperature |
<10S |
|
Pressure |
10ms |
|
|
Working pressure range |
Work pressure |
101-1025KPaA |
|
Security pressure |
2000KPaA |
|
|
Breaking pressure |
3000KPaA |
|
|
Output signal |
(0.082878xP+5 )Vcc/100 |
|
|
Operating temperature |
-30~130℃ |
|
|
Storage temperature |
-40~140℃ |
|
|
Working medium |
R410a;R407c;R134a |
|
