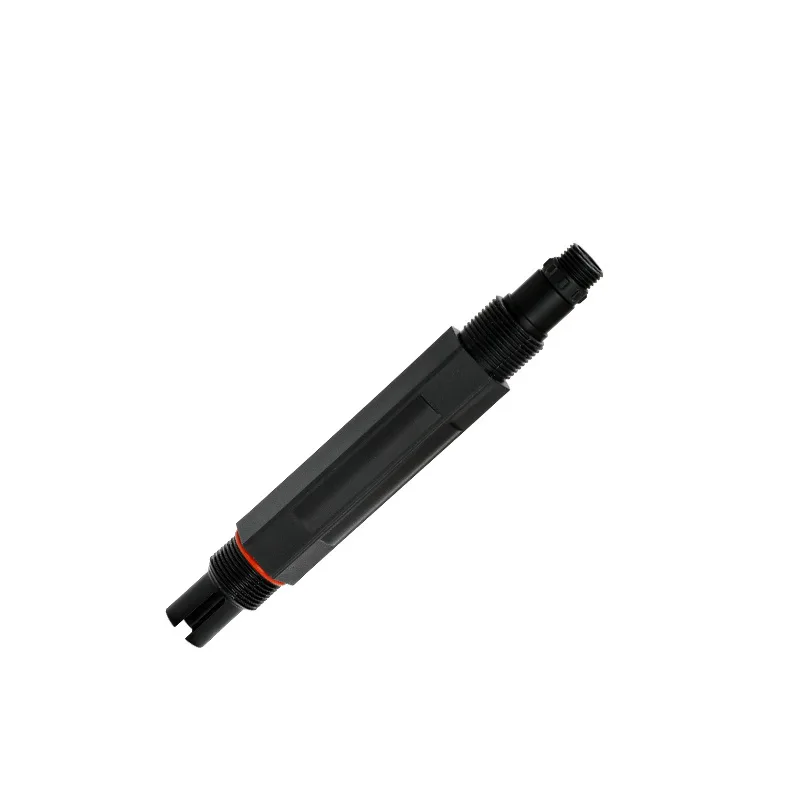

AZIC100-ORP105 RS485 ORP Sensor adopts the electrode method. The measuring part consists of a platinum indicator electrode and a reference electrode.
[Product Description]
AZIC100-ORP105 RS485 Smart ORP Sensor adopts the electrode method. The measuring part consists of a platinum indicator electrode and a reference electrode. By measuring the potential difference of the working cell composed of the indicator electrode and the reference electrode in the solution, the online monitoring of ORP is realized.
AZIC100-ORP105 Smart ORP Sensor can measure the ORP value and temperature value of the liquid in real time, supports 485 serial port output or current output, and has automatic temperature compensation. It can be used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, and tap water industries.
【Features】
● Universal RS485 interface, Modbus/RTU protocol.
● Conveniently connected to third-party equipment such as industrial control computers, general controllers, recording instruments, PLCs, DCS, etc.
● Dual high-impedance differential amplifiers, strong anti-interference, and fast response.
● Pipe threads are easy to install, convenient for submerged installation or installation in pipes and tanks.
● Protection level IP68.
[Technical Parameters]
|
Measuring range |
-1999mV~1999mV |
|
Accuracy |
±6mv |
|
Temperature measurement range |
0~60℃ |
|
Power supply |
12~24VDC |
|
Output |
4~20mA or RS485 |
|
Housing material |
PPS |
|
Connection thread |
NPT3/4 |
|
Signal line length |
5m (customizable) |
|
Protection level |
IP68 |
