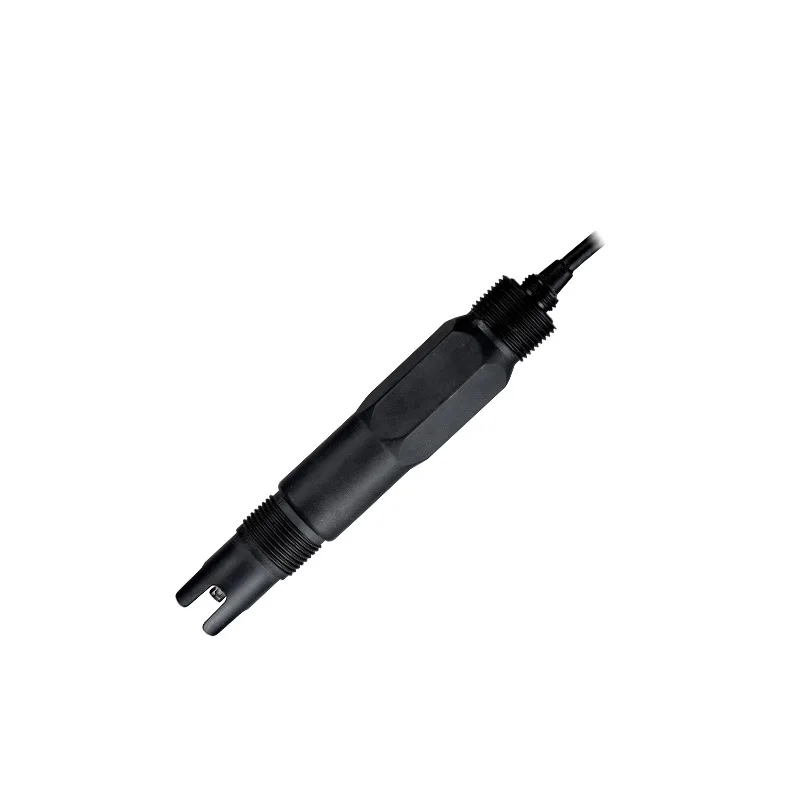

AZIC100-ORP101 ORP IP68 Probe for Water Treatment is used to measure the redox potential in water, reflecting the redox reactivity in water.
[Product Overview]
AZIC100-ORP101 ORP IP68 Probe for Water Treatment is used to measure the redox potential in water, reflecting the redox reactivity in water. They play an important role in sewage treatment, environmental monitoring, and water corrosion control.
[Product Features]
● IP68 protection, 3 bar pressure resistance
● Compact size, more convenient installation, and online uninterrupted water quality monitoring
● H1020 sensitive membrane number
● Digital sensor, RS-485 interface, Modbus/RTU protocol
[Application Scope]
● General water treatment, sewage treatment, aquaculture, surface water monitoring
● Environmental protection engineering, cooling tower circulating water, beverages and food, industrial sewage discharge monitoring, etc.
● Pipe seat or circulation pool installation
[Technical indicators]
|
Measuring range |
-2000mV~2000mV |
|
Accuracy |
±15mV |
|
Temperature measurement range |
0~60℃ |
|
Signal output |
mV signal |
|
Slope |
≥96% |
|
Resolution |
1mV |
|
Housing material |
PPS, ABS |
|
Liquid junction |
PTFE |
|
Connection thread |
Upper end G3/4, lower end NPT3/4, M39*1.5 |
|
Signal line length |
5m (customizable) |
|
Withstand voltage range |
0~3bar |
|
Membrane resistance |
< 500Ω |
|
Protection level |
IP68 |
