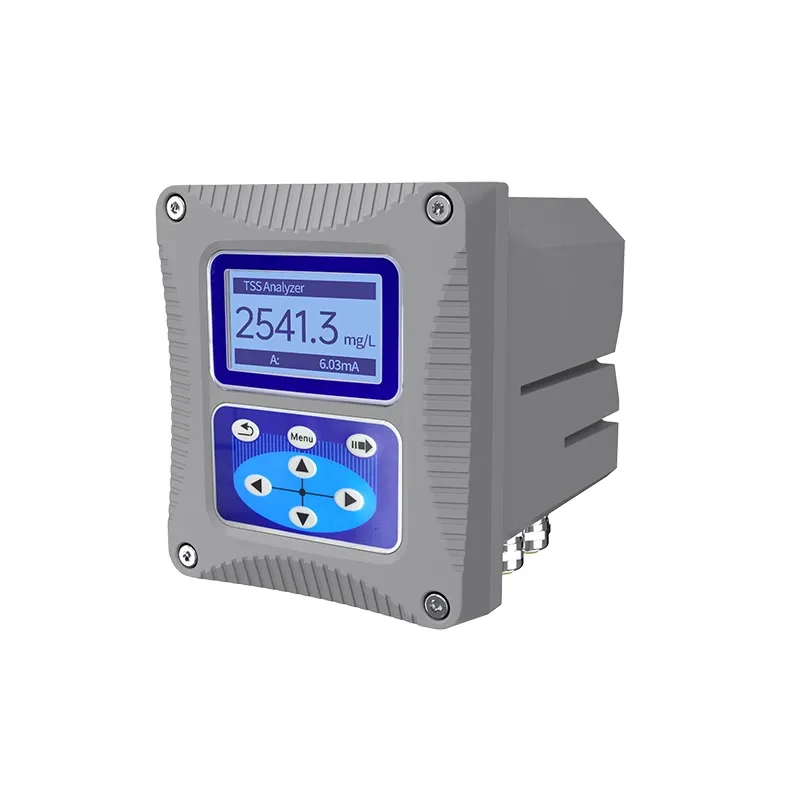

AZIC-TSS102 Suspended solids/TSS/MLSS meter based on the infrared absorption scattered light method and combined with the ISO7027 method.
AZIC-TSS102 Suspended solids/TSS/MLSS meter based on the infrared absorption scattered light method and combined with the application of the ISO7027 method can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of suspended solids and sludge concentration value. According to the usage environment, a self-cleaning function can be equipped with.
Characteristics
Range: 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/L
Resolution: Less than ± 5% of the measured value
Pressure range: ≤ 0.4 MPa
Power supply: AC 220 V ± 10%; 50 Hz/60 Hz
Specification
|
Product |
Suspended Solids (Sludge Concentration/ TSS/ MLSS) meter |
|
Main materials |
Lower casing: Aluminum with powder coating |
|
Cover: PA66+GF25+FR |
|
|
Waterproof rate |
IP65 |
|
Storage temperature |
-20~70℃ |
|
Operating Temperature |
-15~60℃ |
|
Output |
Three-way analog output 4-20mA, response parameters, and corresponding scope can be programmed. Note: the maximum load is 500 ohms |
|
Relay |
A three-way relay can be set up, and response parameters and response values can be programmed |
|
Display |
128 * 64 dot matrix LCD with LED backlight |
|
Digital Communication |
MODBUS RS485 communication function, which can transmit real-time measurements |
|
Power Supply |
AC: 85-500V, 50/60Hz, 5W DC: 9-36V |
