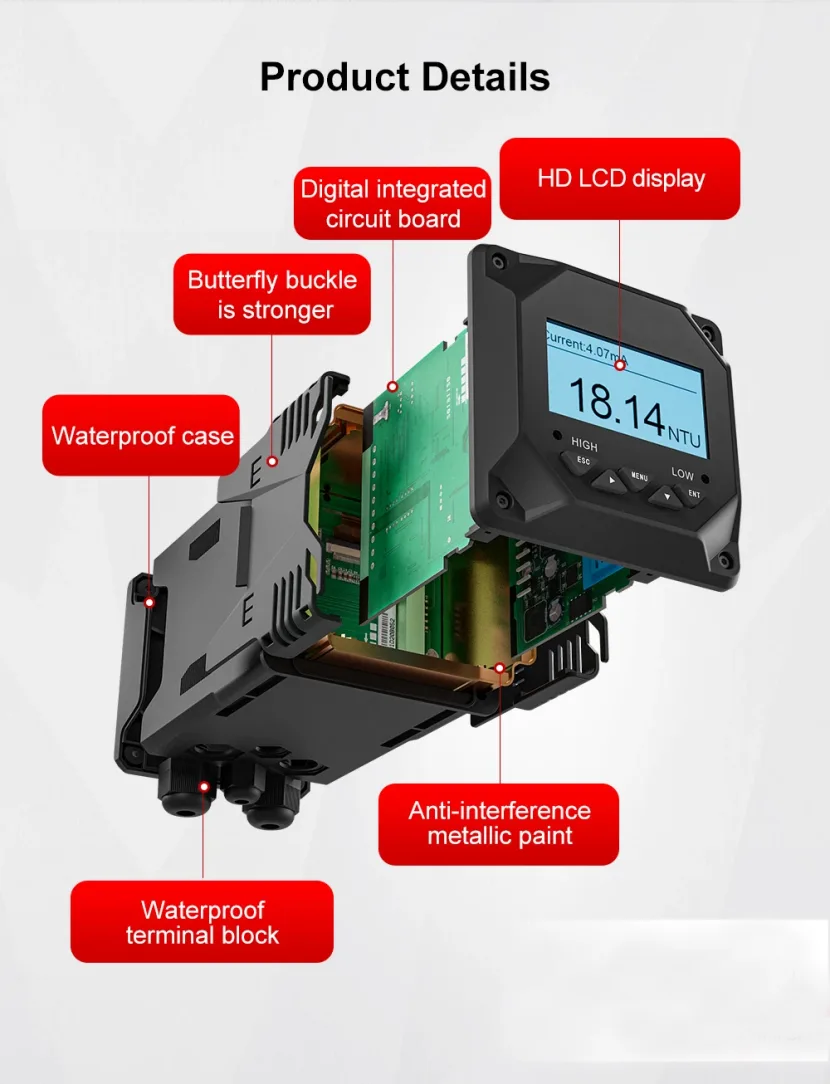

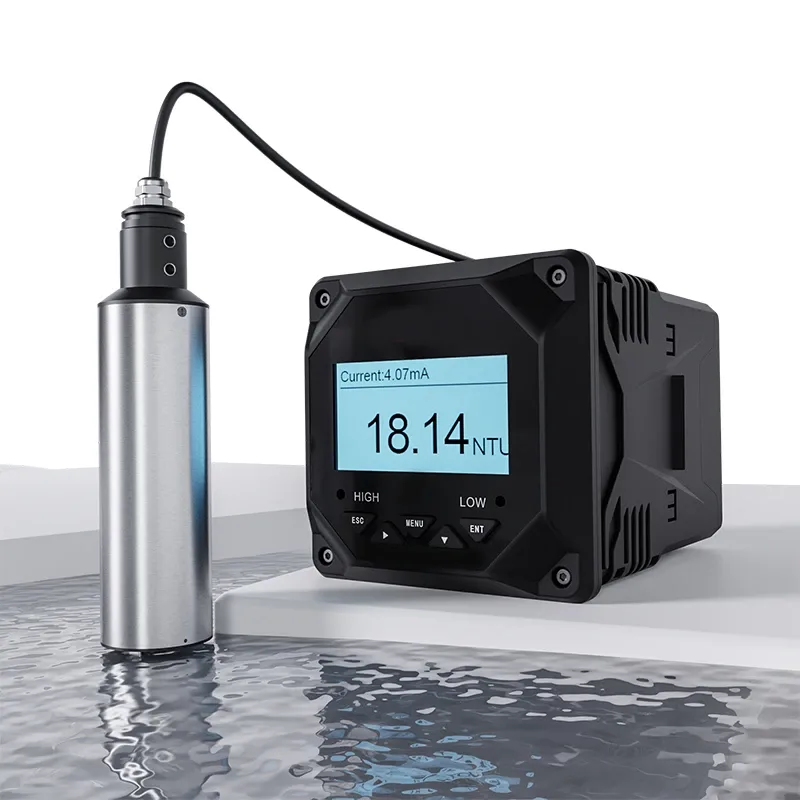

AZIC-TSS101 Liquid TSS/SS analyzing meter is a general-purpose controller for water quality, suitable for use with various water quality sensors.

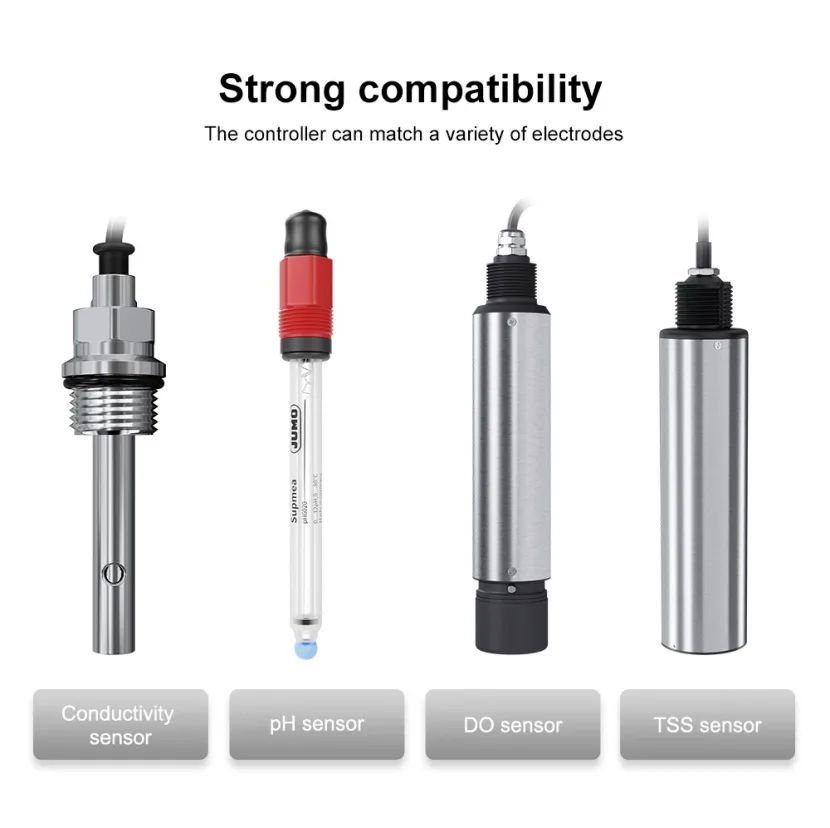

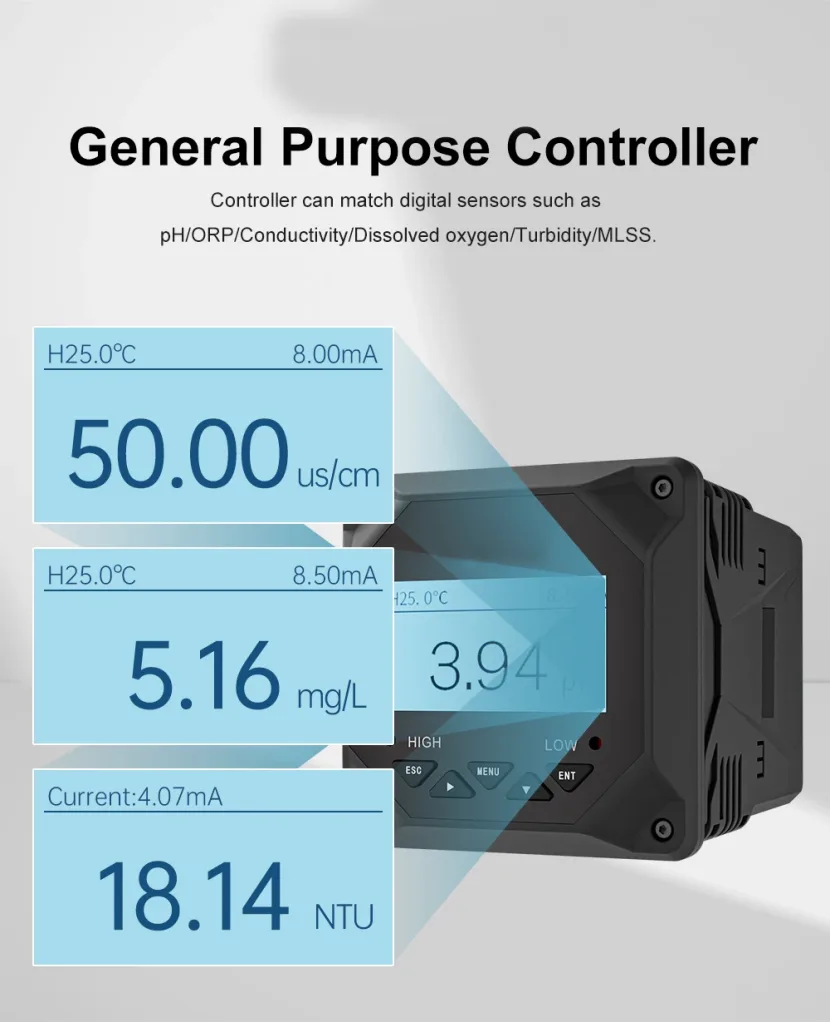

AZIC-TSS101 Liquid TSS/SS analyzing meter is a general-purpose controller for water quality, suitable for use with various water quality series digital sensors. It is used to monitor water quality parameters, including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, and other water quality parameters. Through RS485 or current transmission output to the monitoring room for record keeping.
Characteristics
pH: (0～14) pH
ORP:(-2000～2000)mV
DO:(0～40)mg/L
TDS: (0～600) mS/cm
Turbidity: (0～4000) NTU
Suspended solids: (0～120000) mg/L
Output signal: 4~20 mA; Relay; RS485
Power supply: AC: (100～240) VAC; DC: 24 VDC (Optional)
Specification
|
Product |
Liquid TSS/SS analyzing meter |
|
Dimension |
100mm*100mm*150mm |
|
Range |
pH: (0-14) pH ORP: (-2000-2000) mV |
|
Relative humidity |
(10~85)% |
|
Temperature range |
(0 ~ 60)℃ |
|
Communication |
RS485, Modbus-RTU |
|
Signal output |
4-20mA, maximum loop 500Ω, 0.2%FS |
|
Power supply |
AC: (100-240) VAC |
|
Relay output |
250VAC, 3A |
Introduction
AZIC-TSS101 Liquid TSS/SS analyzing meter is a general-purpose water quality controller. It is suitable for use with Supmea's multiple water quality series digital sensors. It is used to monitor water quality parameters, including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, etc.
