Specification

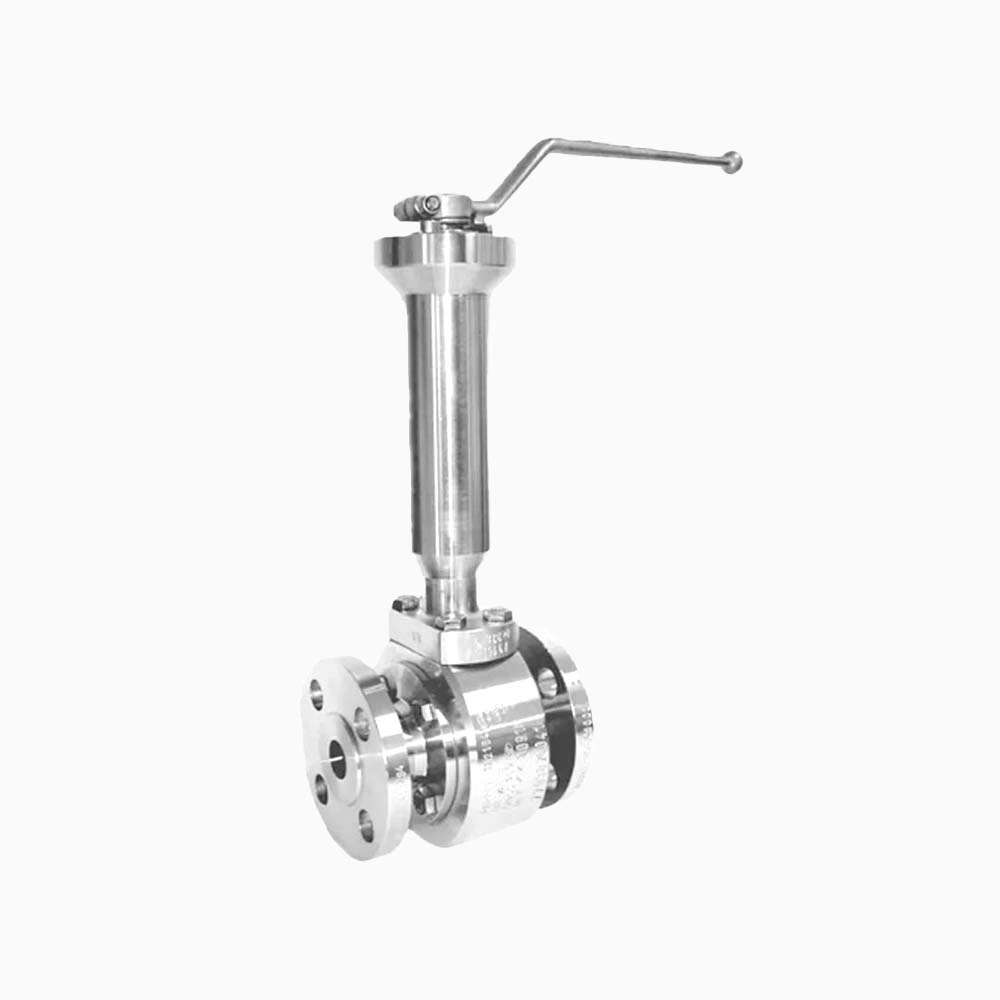

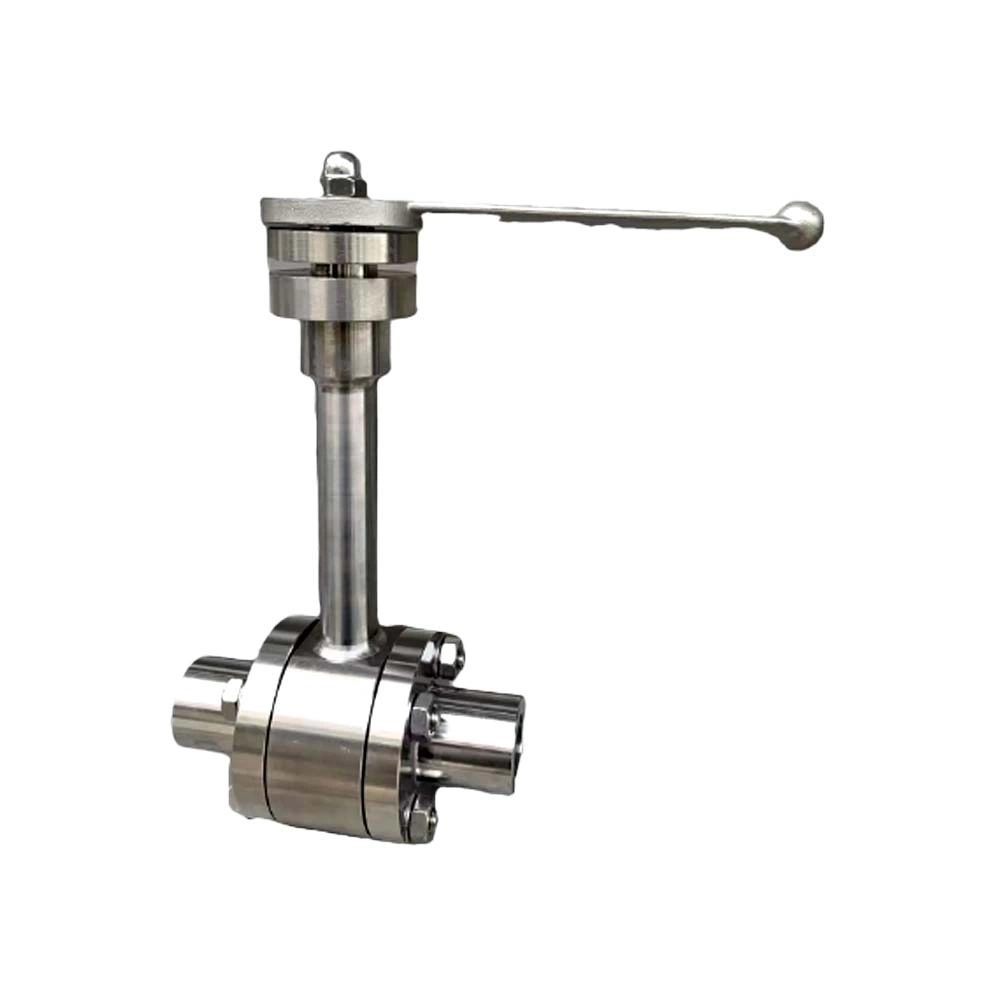

Pneumatic Diaphragm Ultra Low Temperature Cryogenic Ball Valve
A three-piece ball valve is made of three easy-to-remove components that are connected with bolts, which makes it friendly for cleaning. A great benefit of a 3-pc ball valve is that you only have to remove the piece at the center when cleaning the line. Three-piece ball valves are typically manufactured using investment cast and designed to withstand pressures up to 1000 psi. It’s suitable for various solid, liquid, and gas applications.
|
Valve Size
|
1“–10”
|
|
Pressure Class
|
150LB–600LB, PN10–PN64
|
|
Materials
|
WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A
|
|
Design and Manufacturing Standards
|
API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
|
|
Face to Face Standards
|
ASME B16.10, BS 558, BS12982, ISO 5752
|
|
Flange Dimension Standards
|
ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
|
|
Pressure Test Standards
|
API598 API 6D BS12569
|
|
Fire Safety Test Standards
|
API 6FA API 607
|
|
Quality/Product Certifications
|
ISO9001, ISO14001, ISO18001
|
|
Fugitive Emissions
|
ISO 15848-1, API 622
|
|
NACE
|
NACE MR 0175
|
|
Valve operator options
|
Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
|
|
Shutoff Class
|
API 598 (Zero Leakage), API 6D
|
|
Bore
|
Full Bore, Reduced Bore
|
|
Pa
|
SW, NPT, BW , RF, RTJ
|
