Product Overview

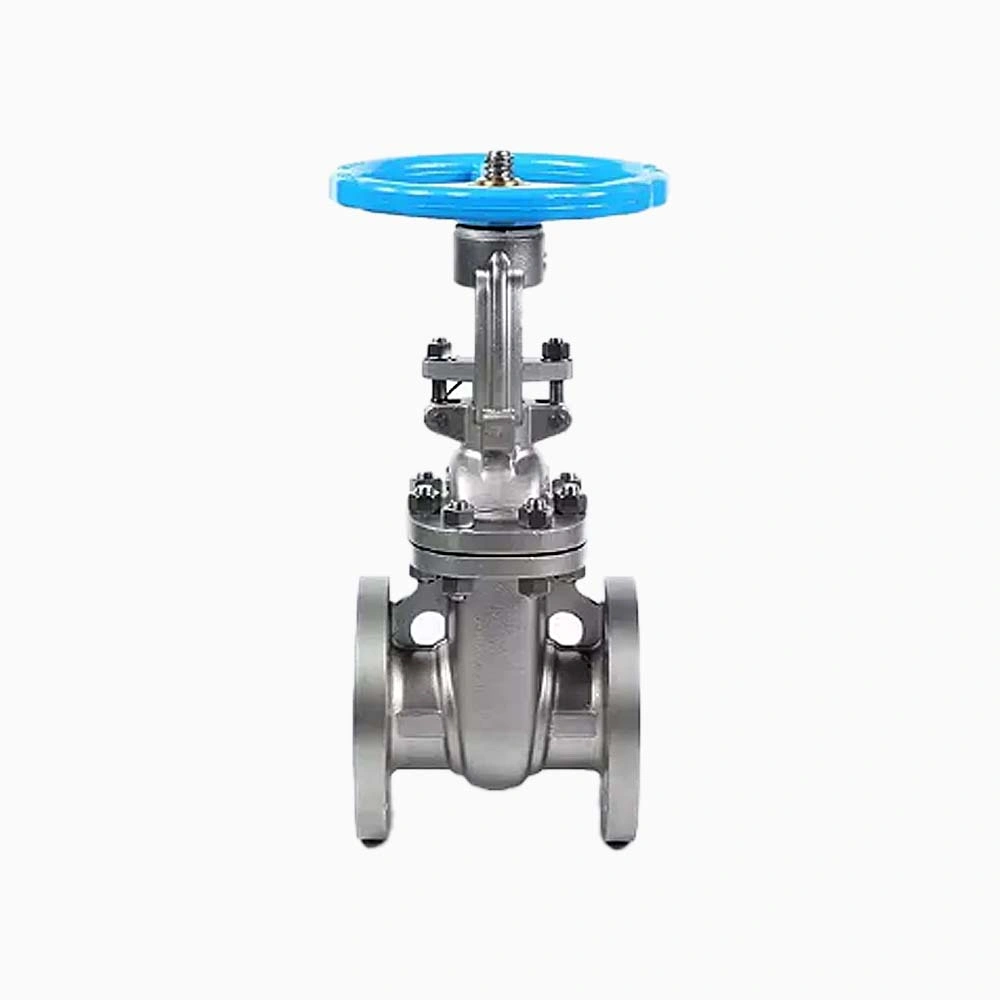

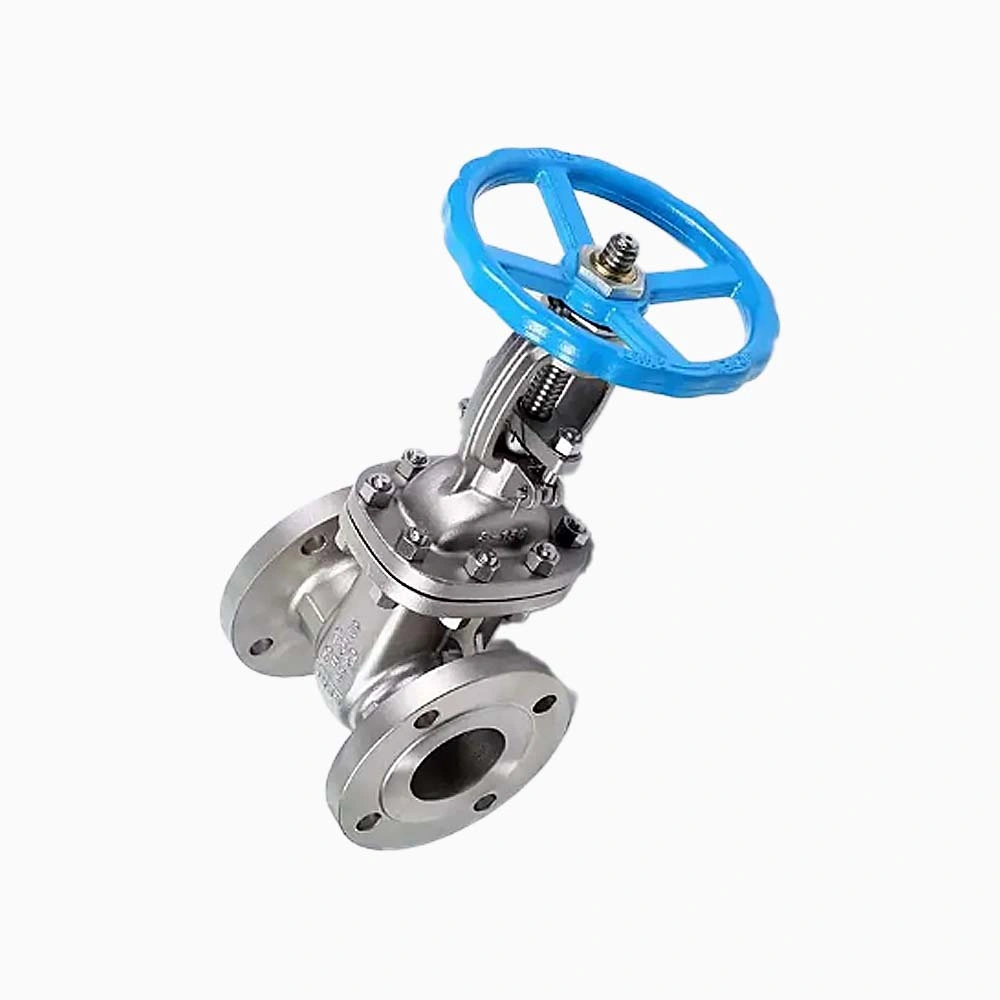

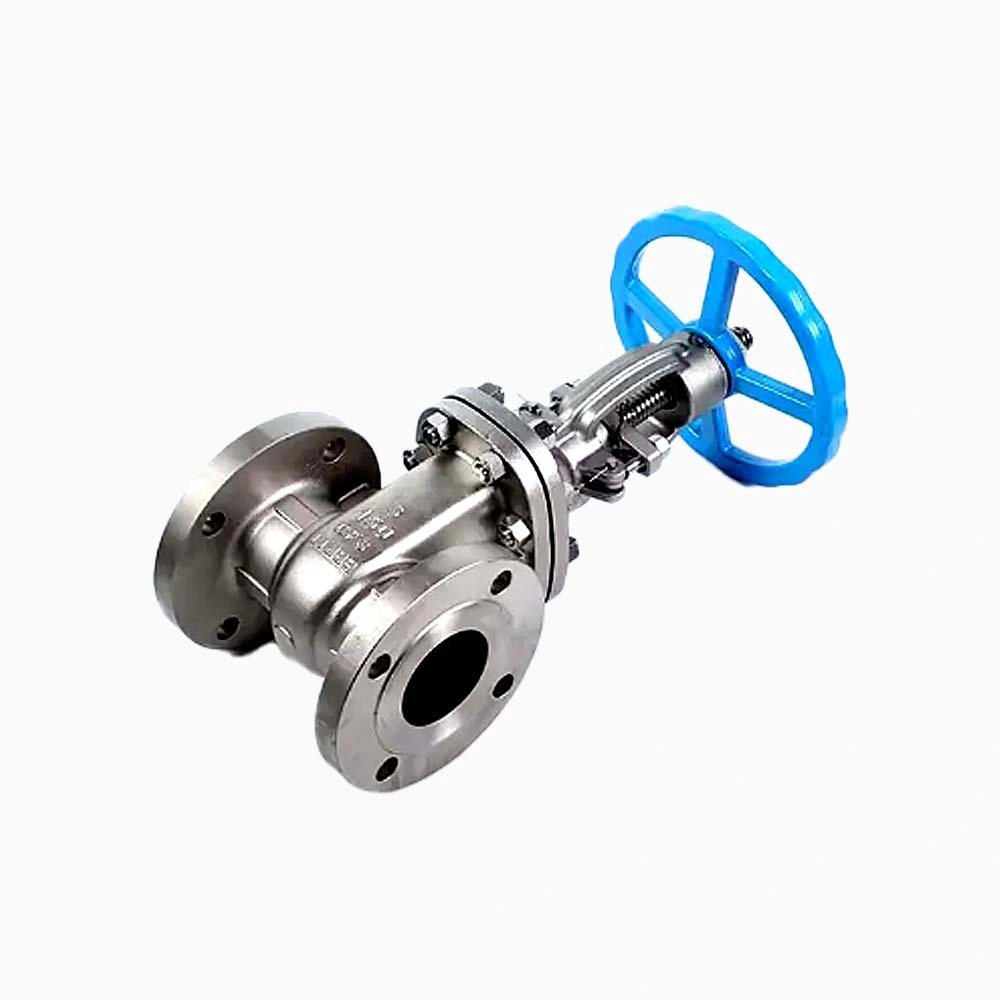

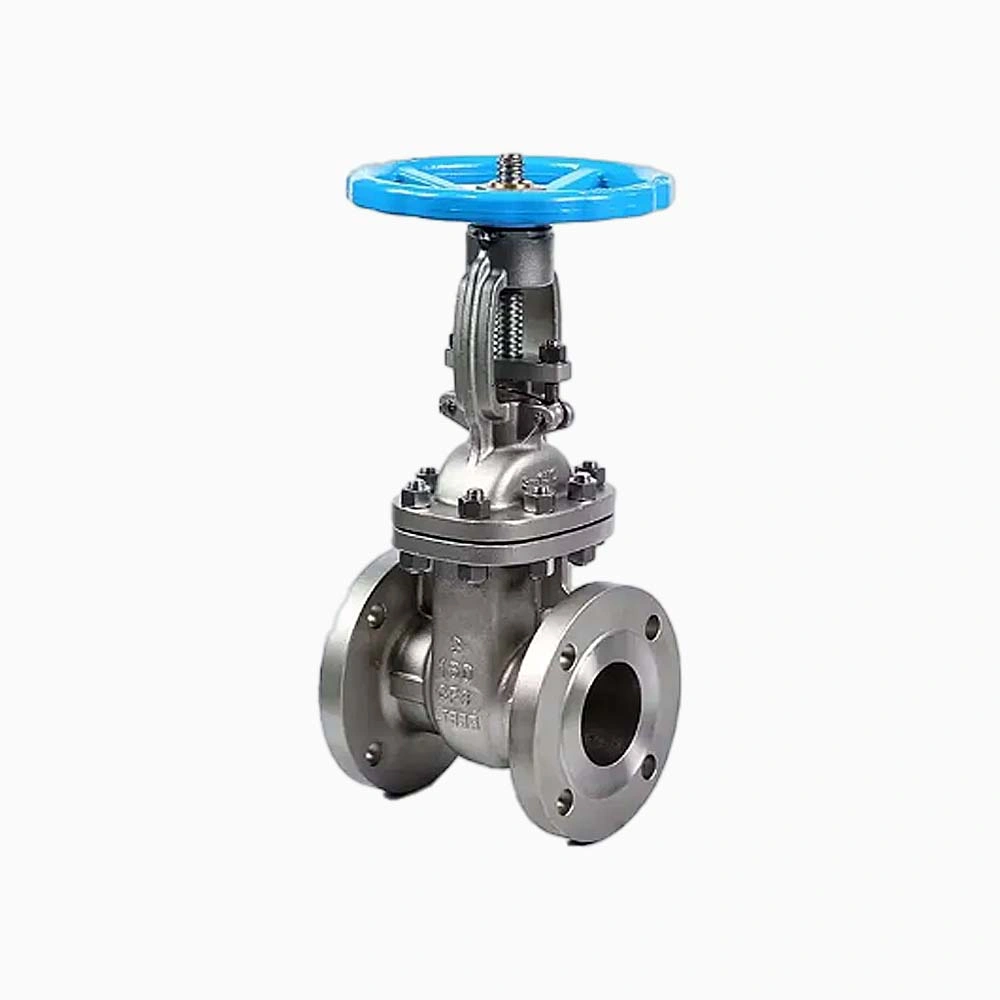

Forged Steel F316 2” 150LB RF FLANGE Gate Valve
Designed for use in high-temperature steam and water, this multipurpose gate valve can be used in a wide variety of general-purpose applications including vents, drains and isolation of compressors, condensers, heaters, pumps, water lines, heat exchangers, bypass lines, flash tanks, control valves, etc.
Specification
|
Valve Size
|
1/4 “–2”, DN10–DN50
|
|
Pressure Class
|
150LB–2500LB, PN16–PN420
|
|
Materials
|
Carbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22
|
|
Design and Manufacturing Standards
|
API602, ASME 16.34, BS 5352, BS 6364
|
|
Face to Face Standards
|
API 602
|
|
Flange Dimension Standards
|
SW Socket welding ends according to ASME B16.11,
BW butt end by ASME B16.25,
NPT threaded connectors according to ASME B1.20.1
|
|
Pressure Test Standards
|
API 598
|
|
Fire Safety Test Standards
|
–
|
|
Quality/Product Certifications
|
ISO9001, ISO14001, ISO18001
|
|
Fugitive Emissions
|
ISO 15848-1, API 622
|
|
Valve Operator Options
|
Hand wheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator
|
|
Shutoff Class
|
API 598 (Zero Leakage), API 6D
|
|
Bore
|
Full Bore, Reduced Bore
|
|
Process Connection Types
|
SW, NPT, BW, RF, RTJ
|
