Newway three-piece ball valve is made of three easy-to-remove components that are connected with bolts, which makes it friendly for cleaning.
Nominal Diameter:: 1”(DN25)
Bore:: Full Bore
Nominal Pressure:: PN16
Material:: Alloy 20
Operation:: Lever
Design Standard:: API 6D
Test/Inspection:: API598
Specification

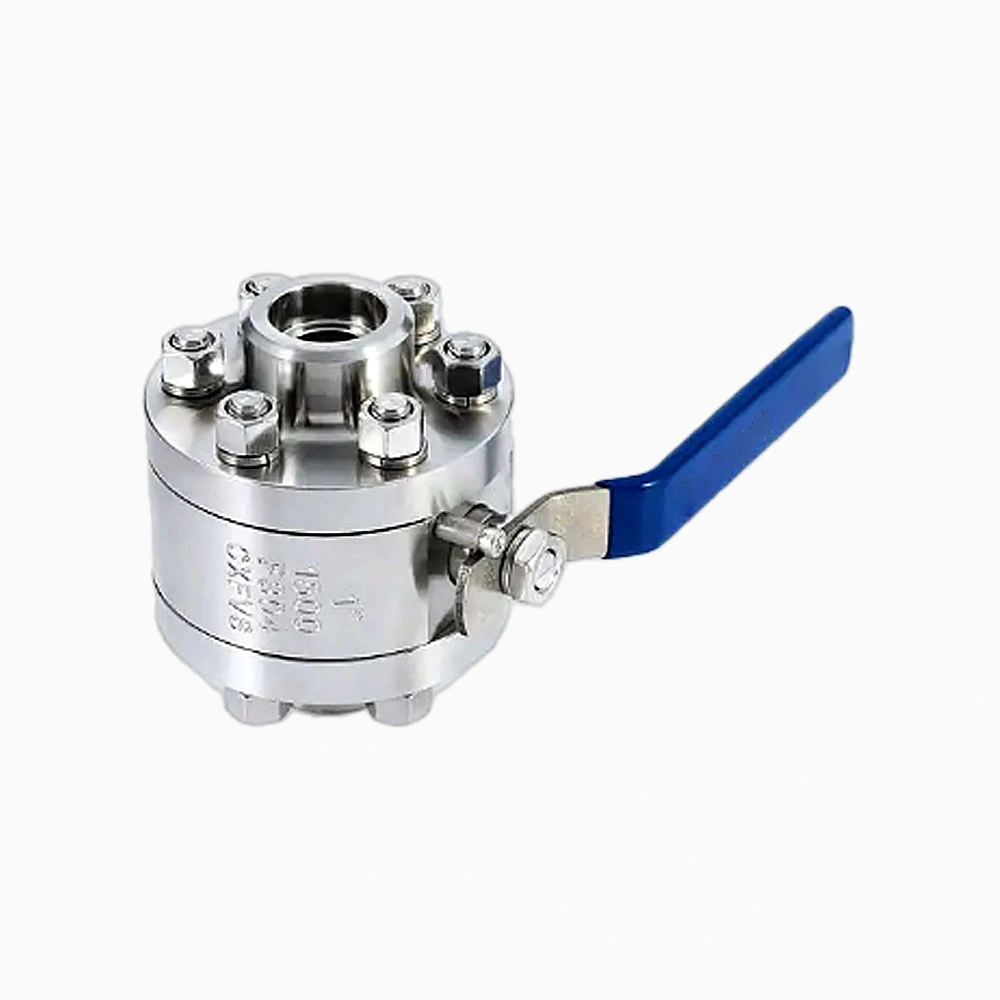

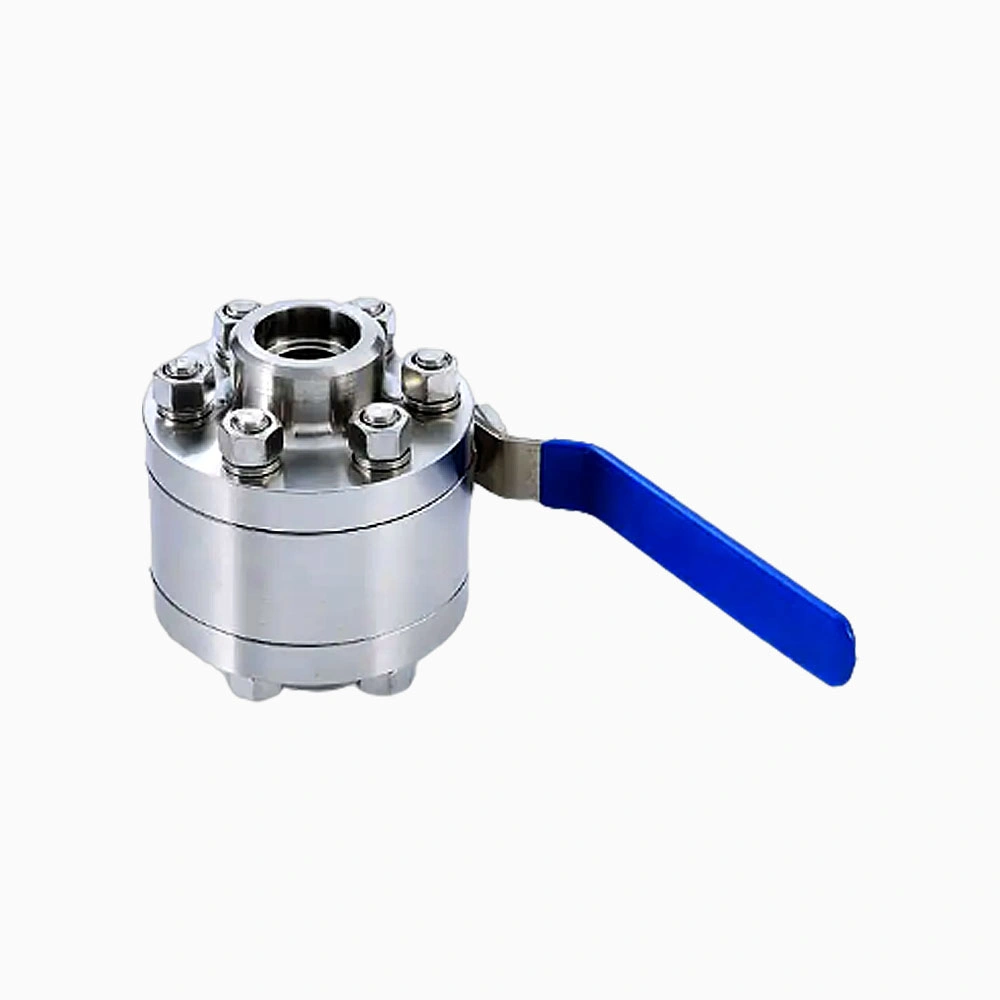

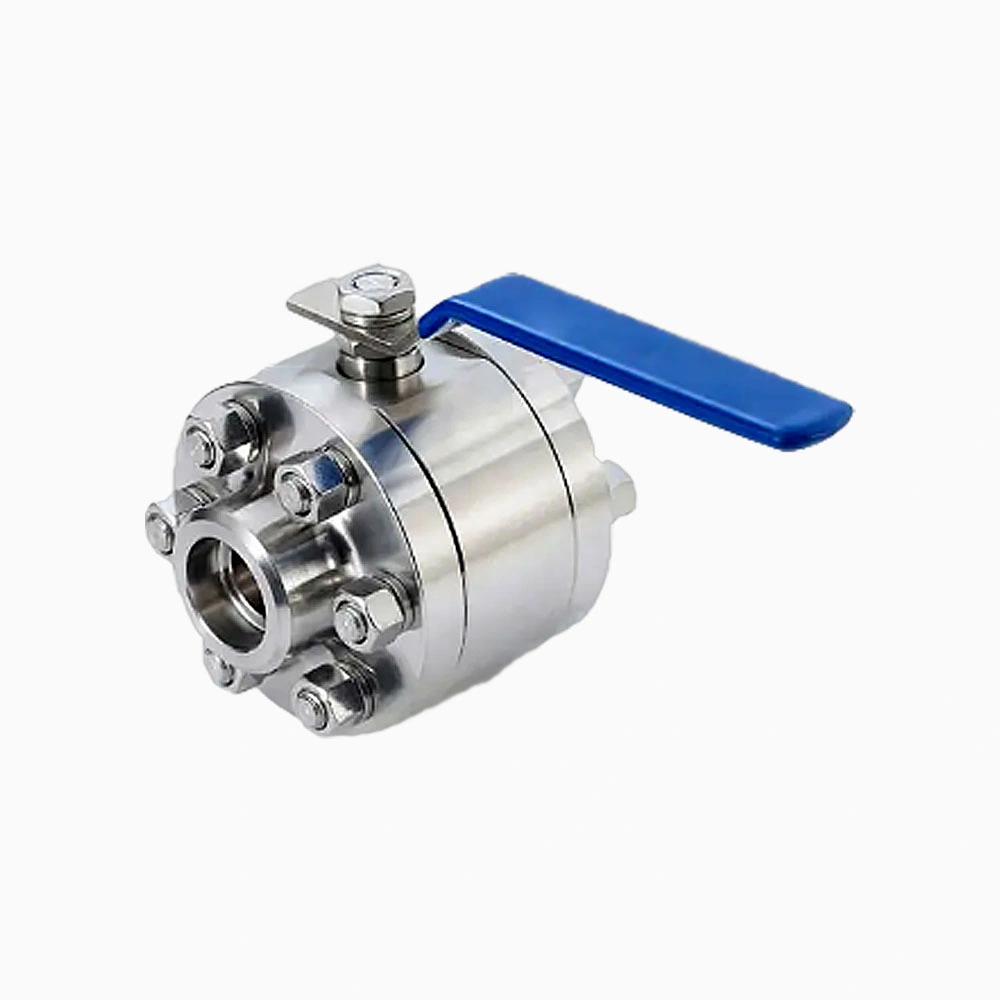

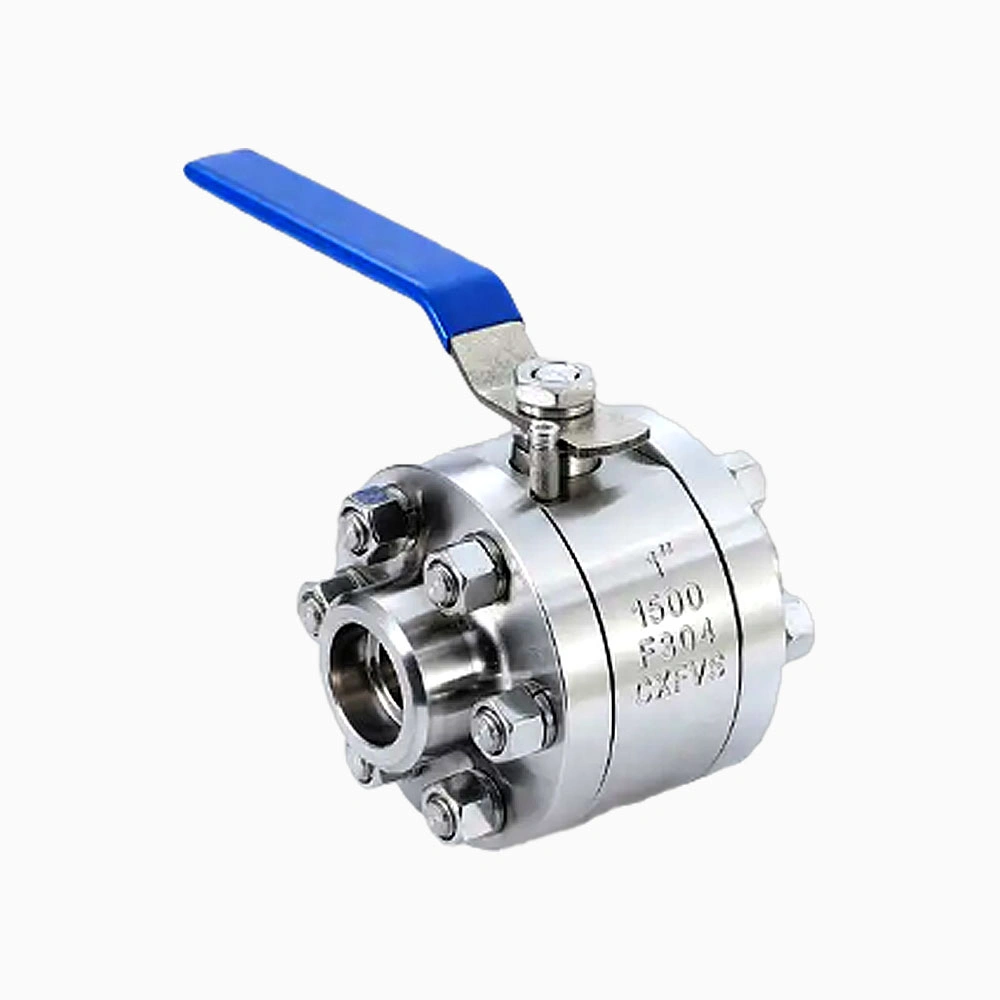

Forged Steel Alloy 20 Full Bore DN25 PN16 NPT Floating Ball Valve
Newway three-piece ball valve is made of three easy-to-remove components that are connected with bolts, which makes it friendly for cleaning.
A great benefit of a 3-pc ball valve is that you only have to remove the piece at the center when cleaning the line. Three-piece ball valves are typically manufactured using investment cast and designed to withstand pressures up to 1000 psi. It’s suitable for various solid, liquid, and gas applications.
|
Valve Size |
1“–10” |
|
Pressure Class |
150LB–600LB, PN10–PN64 |
|
Materials |
WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
|
Design and Manufacturing Standards |
API 6D， API 608，ASME B16.34，ISO 17292，BS5351， |
|
Face to Face Standards |
ASME B16.10, BS 558, BS12982, ISO 5752 |
|
Flange Dimension Standards |
ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627 |
|
Pressure Test Standards |
API598 API 6D BS12569 |
|
Fire Safety Test Standards |
API 6FA API 607 |
|
Quality/Product Certifications |
ISO9001, ISO14001, ISO18001 |
|
Fugitive Emissions |
ISO 15848-1, API 622 |
|
NACE |
NACE MR 0175 |
|
Valve operator options |
Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
|
Shutoff Class |
API 598 (Zero Leakage), API 6D |
|
Bore |
Full Bore, Reduced Bore |
|
Process Connection Types |
SW, NPT, BW , RF, RTJ |
Valve Details
3-piece ball valve parts consist of two pipe connectors and one primary component. The pipe connectors are installed via welding or threading to the pipeline. The main body then attaches to the middle portion of these two pipe connectors.
The ball valve’s 3-pc body allows easy maintenance and replacement of easily wearable components like stems and balls. Such straightforward and low-cost care makes it highly recommended for high-wear applications.
