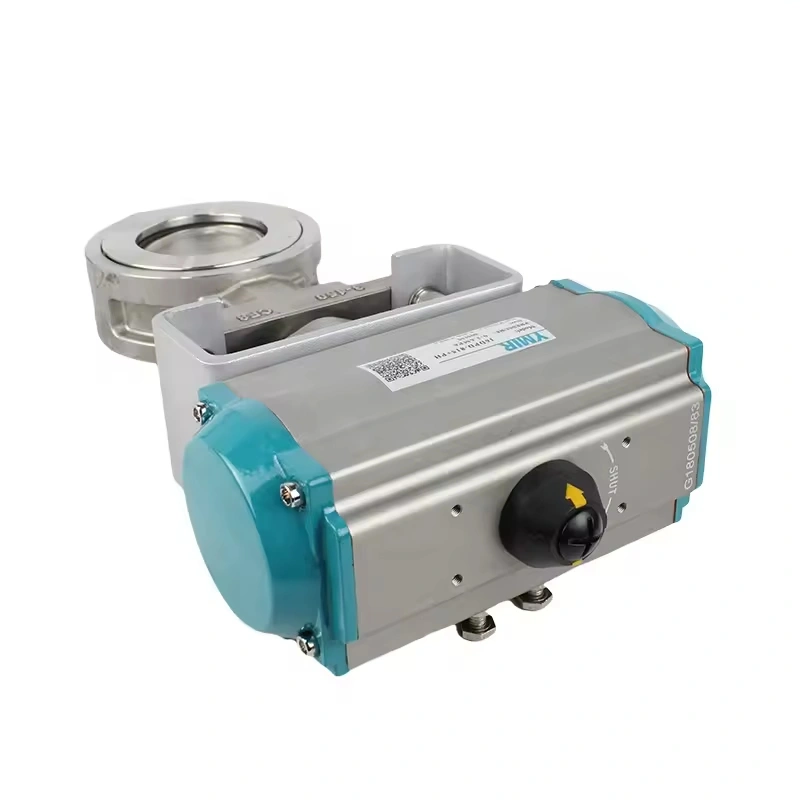

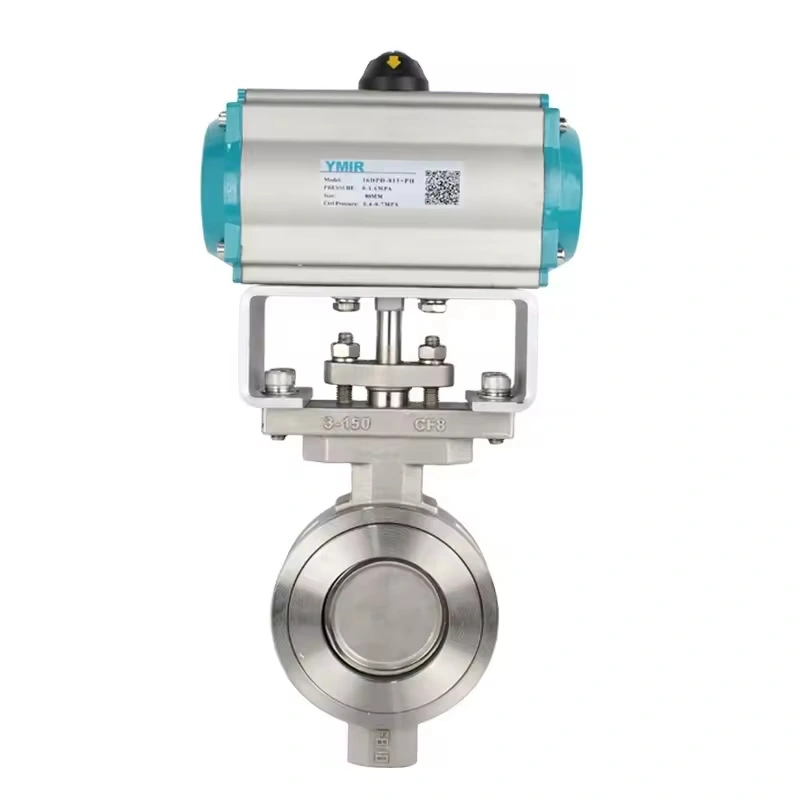

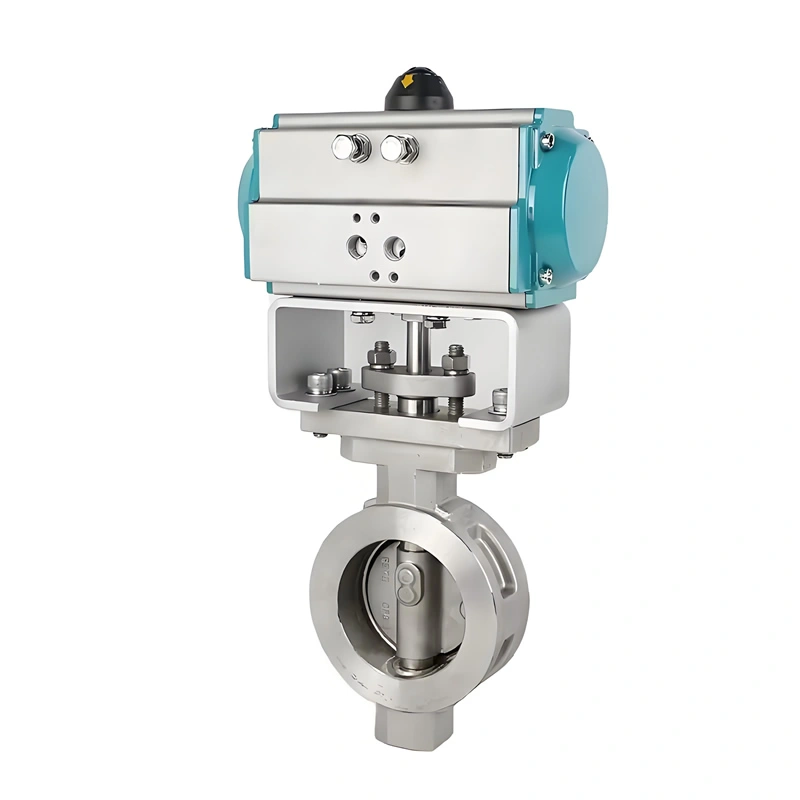

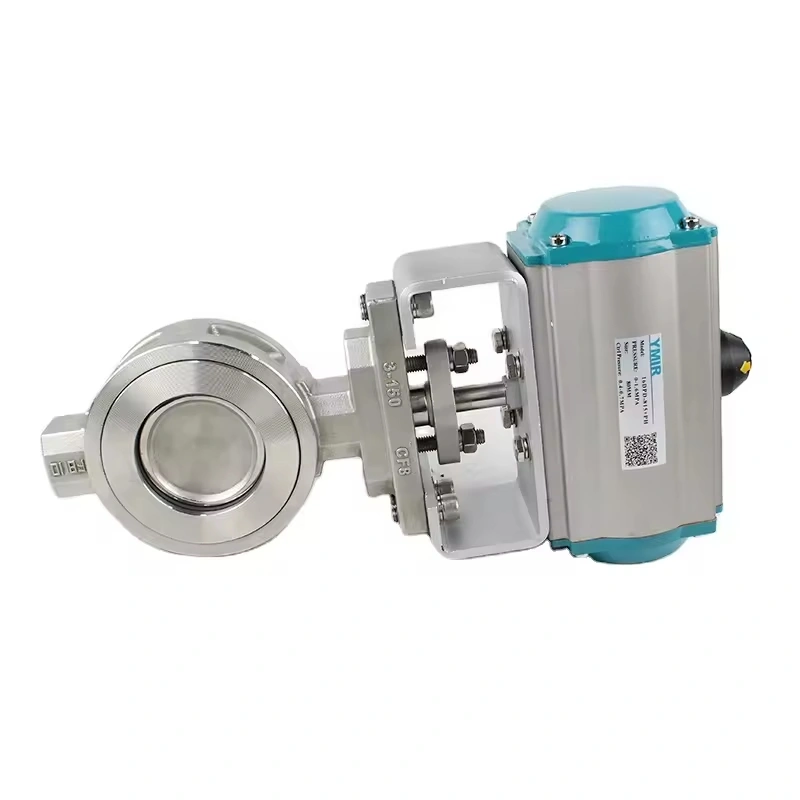

Double Acting Double Eccentric Pneumatic butterfly Valve for Steam Pipe and Steam Pipe in Valve
In high-cycle applications requiring rapid isolation and precise modulation, traditional valves struggle with wear and response lag. NWV’s double-offset pneumatic butterfly valve—crafted from CF8M stainless steel with ISO 5211-compliant actuators—delivers zero-friction sealing, millisecond actuation, and corrosion immunity, setting new standards for chemical processing, power generation, and automated fluid systems.
Assembly & Validation
|
Process
|
Standard
|
Acceptance Criteria
|
|
Torque Calibration
|
ISO 5211
|
≤45 Nm @ DN300
|
|
Seat Deformation Test
|
API 598 Annex F
|
≤0.1% permanent set
|
|
Cycle Endurance
|
MSS SP-67
|
250,000 cycles @ 25°C
|
|
Fugitive Emissions
|
ISO 15848-1
|
Class BH (≤50 ppm methane)
|
Technical Superiority: Beyond Standard Butterflies
|
Parameter
|
NWV Double-Offset
|
Concentric Competitor
|
|
Seal Wear Rate
|
0.003mm/10k cycles
|
0.12mm/10k cycles
|
|
Operating Torque
|
22% of theoretical
|
65% of theoretical
|
|
Temperature Range
|
-196°C to 425°C
|
-29°C to 150°C
|
|
Bubble-Tight Shutoff
|
DN600 @ 150LB
|
Max DN300 @ 150LB
|
Product Overview
Nwv Double-Offset Pneumatic Butterfly Valve: Precision Flow Control for Demanding Industrial Processes
In high-cycle applications requiring rapid isolation and precise modulation, traditional valves struggle with wear and response lag. NWV’s double-offset pneumatic butterfly valve—crafted from CF8M stainless steel with ISO 5211-compliant actuators—delivers zero-friction sealing, millisecond actuation, and corrosion immunity, setting new standards for chemical processing, power generation, and automated fluid systems.
