Manual Marine Flange Bronze Straight Globe Valve is a specialized flow control component designed for marine pipelines.
Specification:: DN15-DN100
Actuator:: Manual
Material:: Brass or Bronze
Standard:: DIN, GB, ANSI, BSW, JIS
Pressure Range:: PN10~PN16 (1.0MPa~1.6MPa)
Temperature Range:: -10℃~80℃
Specification

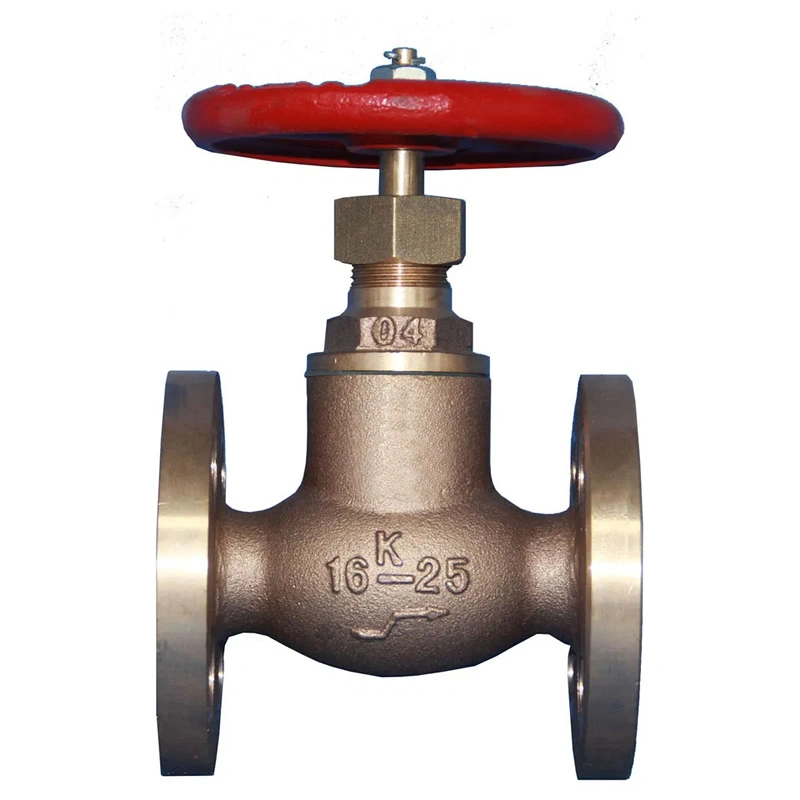

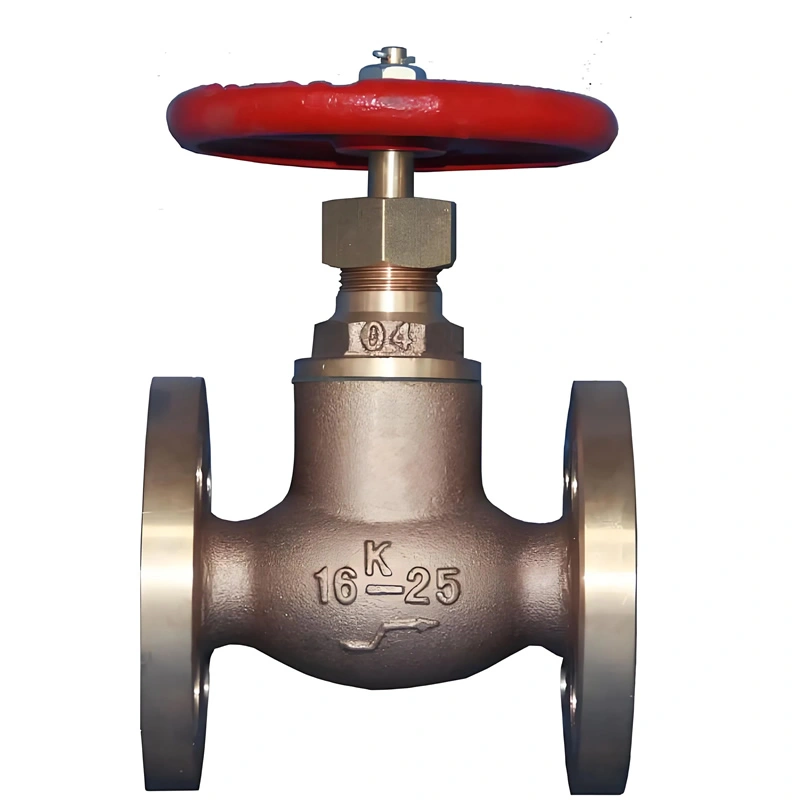

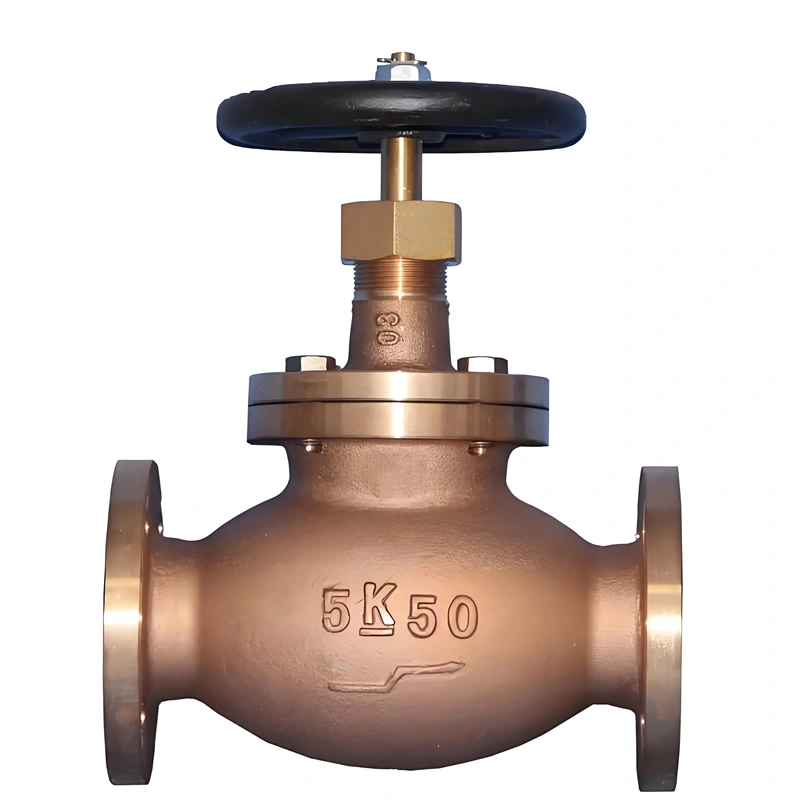

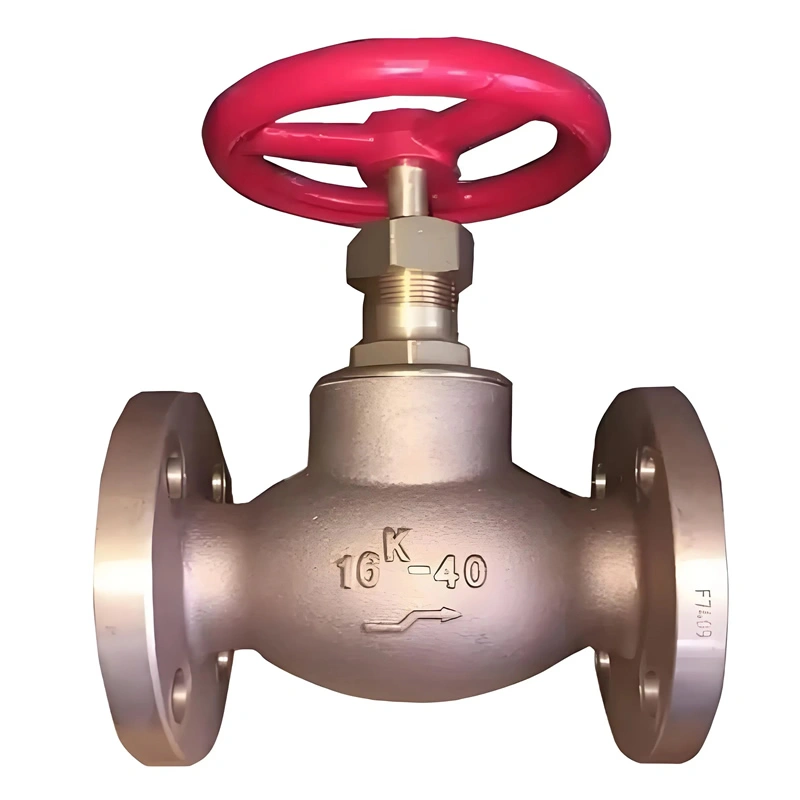

Manual Marine Flange Bronze Straight Globe Valve
I. Product Overview
Manual Marine Flange Bronze Straight Globe Valve is a specialized flow control component designed for marine pipelines. Crafted from high-quality bronze, it features a straight-through structure and flange connection, compatible with both DIN and ANSI standards. It enables precise manual flow regulation of seawater, freshwater, fuel oil, and hydraulic oil in marine systems. Operating at -10℃~80℃ and suitable for low to medium-pressure (PN10~PN16) environments, it resists seawater corrosion.
II. Key Attribute Parameters
Size: DN50 (2″), tailored for medium-diameter marine pipelines.
Pressure Range: PN10~PN16 (1.0 MPa~1.6 MPa), suitable for low to medium-pressure marine systems like cooling and fuel lines.
Temperature Range: -10℃~80℃, adapting to ambient temperatures of marine media.
Material Configuration:
Body & Bonnet: Bronze (C37710), resisting seawater and salt mist corrosion.
Disc & Seat: Bronze, precision-machined for tight sealing and wear resistance.
Stem: Bronze, ensuring smooth operation and corrosion resistance.
Gasket: Non-asbestos, withstanding marine oil and water for stable sealing.
Connection Type: Flange, compliant with DIN and ANSI standards for marine pipeline integration.
