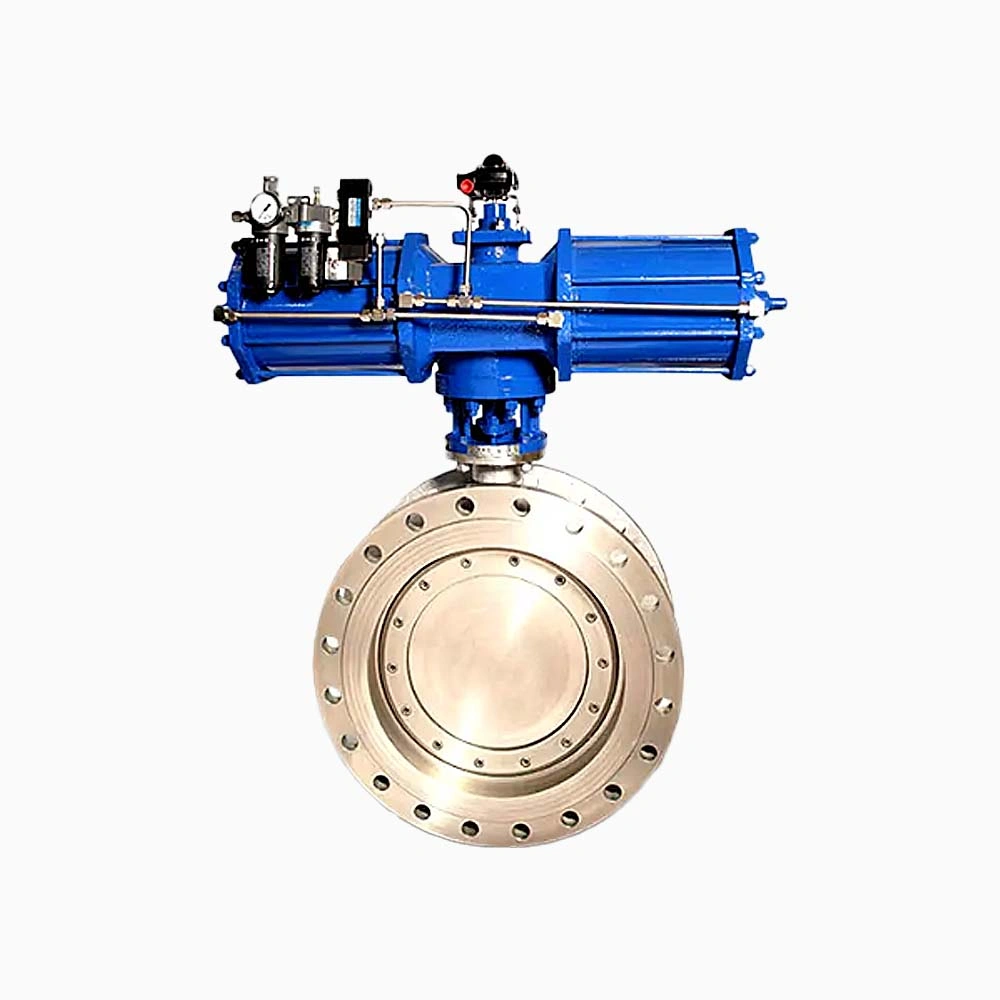

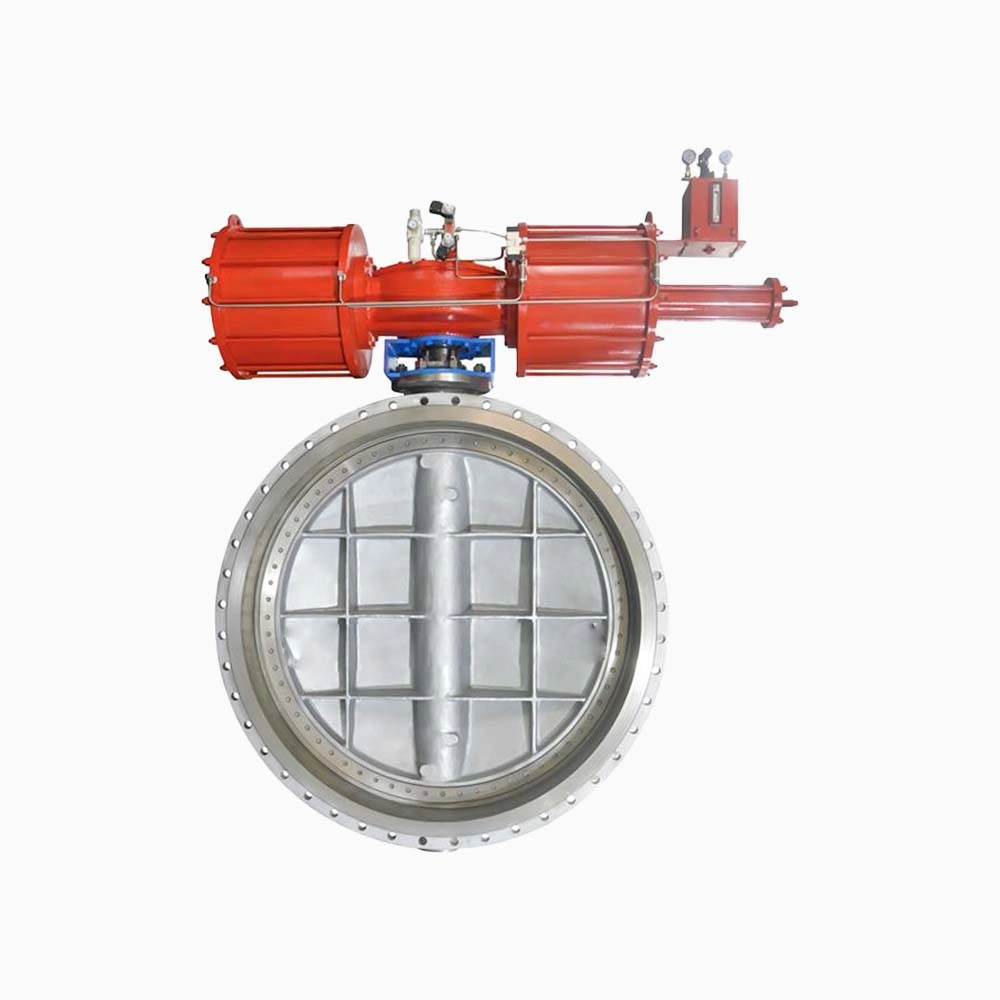

Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve
Nominal Diameter:: DN1800
Bore:: Full Bore
Nominal Pressure:: PN16
Material:: CF8M
Design Standard:: API609
Test/Inspection:: API598
Flange standard:: ASME/ANSI B16.47
Top Flange:: ISO5211
Specification
Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve
|
Valve Size |
DN50-1600, NPS 2-60 |
|
Pressure Rating |
N1-100, 150LB-600LB |
|
Materials |
WCB, LCB, LC1, CF8, CF8M, CF3, CF3M, 4A, 5A, WC6, WC9, C95800 |
|
Design and Manufacturing Standards |
API 609, EN 593 |
|
Face to Face Standards |
API 609, EN 558, ISO 5752 |
|
Flange Size Standards |
ASME B 16.5, ASME B16.47, EN 1092-1, GOST 54432, JIS 2220 |
|
Stress Test Standards |
API 598, EN 12266-1 |
|
Fire Safety Test Standard |
API 607 |
|
Quality/Product Certifications |
ISO9001, ISO14001, ISO18001 |
|
Unorganized Emissions |
ISO 15848-1, API 622 |
|
National ACE |
NACE MR0175, NACE MR0103 |
|
Valve Operator Options |
hand wheel, worm wheel, electric actuator, pneumatic actuator, hydraulic actuator. |
|
Shutdown Level |
API 598 (Zero leakage) |
|
Aperture |
full aperture |
|
Process Connection Types |
sandwich, flange, lug, welding |
