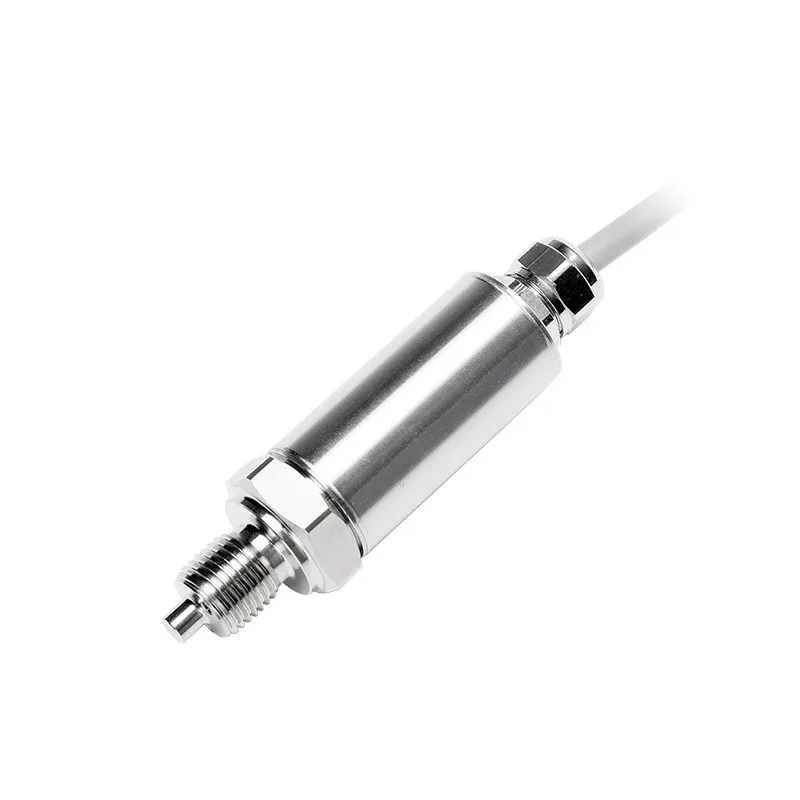

AZIC800-217B High-precision Temperature and Pressure Transmitter is sanitary pressure transmitter for food and beverage industry.
【Product Introduction】
AZIC800-217B High-precision Temperature and Pressure Transmitter adopts all-stainless steel structure. The pressure detection sensitive elements are automatically tested by computer. The laser adjustment process performs zero point and temperature performance compensation in a wide temperature range, which enhances the long-term stability of the transmitter in industrial environments.
The pressure chamber adopts 304 stainless steel integral laser welding process, which is safe and leak-free. The transmitter has built-in digital circuits with strong anti-RF and electromagnetic interference and automatic temperature compensation. It has strong anti-interference ability, wide working range and good long-term stability.
【Product Features】
● Excellent explosion-proof and impact resistance, overload resistance, vibration resistance and corrosion resistance;
● High-efficiency lightning protection, anti-RF and electromagnetic interference protection;
● Advanced temperature digital compensation function, wide working temperature range;
● High precision, high frequency response and good long-term stability;
● Adopt epitaxial platinum resistance probe, fast temperature measurement response and high precision.
【Product Application】
● Industrial process detection and control
● Hydraulic and pneumatic control system
● Automatic detection system
● Pump station and water treatment system
【Technical parameters】
|
Range |
Pressure: 0~6...600bar (gauge pressure); Temperature: -30~125℃ |
|
Output signal |
RS485/RS232 (Modbus RTU protocol), 4-20mA&platinum resistance (P/T), 4-20mA&4-20mA (P/T) |
|
Accuracy |
Pressure: ±0.3%FS, ±0.5%FS; Temperature: ±0.5%FS or 0.5℃, whichever is greater |
|
Signal line specifications |
4 Wire |
|
Supply voltage |
9~30VDC |
|
Operating temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+125℃ |
|
Temperature compensation |
-20℃~+85℃ |
|
Long-term stability |
≤±0.1%FS/year |
|
Allowable overload |
300%FS |
|
Destruction pressure |
500%FS |
|
Shock (11mS) |
100g |
|
Zero temperature drift |
±0.02%FS/℃ |
|
Full range temperature drift |
±0.02%FS/℃ |
|
Pressure interface |
M20*1.5, G1/4, NPT1/4 (customizable) |
|
Electrical connection |
M12 connector, large Hirschmann, direct outlet (customizable) |
|
Protection level |
IP65 |
