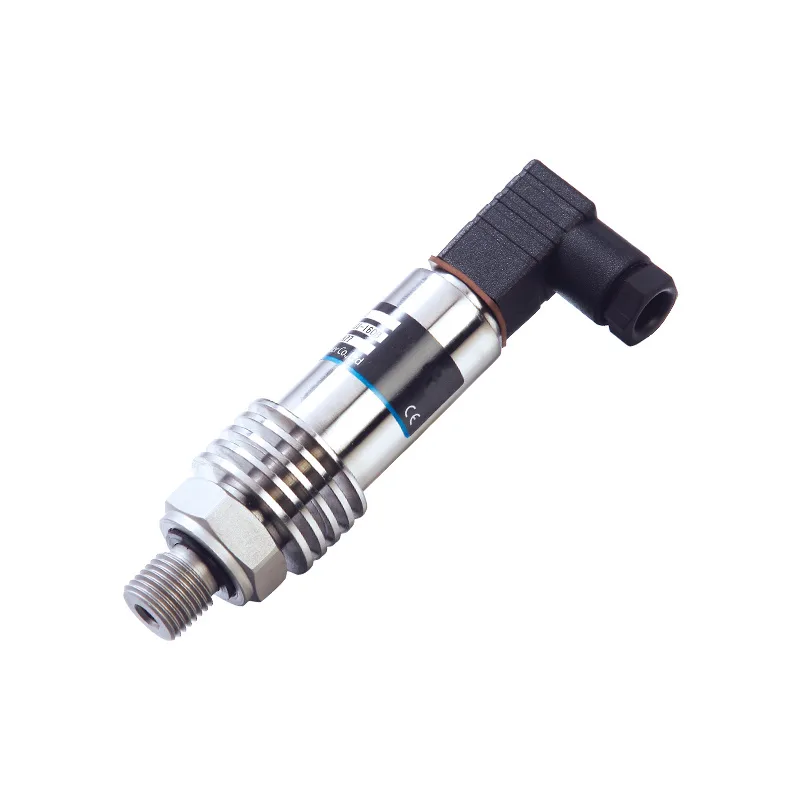

AZIC800-216 High temperature pressure sensor boasts better performance and reliability along with: Absolute, Gauge and Densitometric measurements.
【Product Description】
AZIC800-216 High temperature pressure sensor boasts better performance and reliability along with: Absolute, Gauge and Densitometric measurements; Multiple pressure ranges, port types, termination types and outputs, High-end material kits, Professional technical support.
【Product Features】
● Advanced glass micro-melting process, elastomer overall structure design, no leakage hidden danger
● Equipped with heat sink, 125°C temperature compensation, continuous operation at high temperature, suitable for long-term medium temperature over 100R°C
● Excellent shock, overload, vibration and corrosion resistance
● Advanced temperature digital compensation function, wide operating temperature range
● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection
● High precision, high frequency response, good long-term stability
【Applications】
● Medical high temperature and high pressure disinfection
● Measurement of high temperature media such as steam and hot oil
● Measurement and control in the boiler industry
● High temperature pressure measurement and control for other automation systems
【Technical Parameters】
|
Pressuretype |
Gaugepressure,absolutepressure,sealingpressure |
|
Pressure range (bar) |
6、10、16、25、40、60、100、160、200、250、300、400、500、600、750、1000 |
|
Pressure Range (psi) |
100 200 300 500 750 1K 1.5K 3K 5K10K 15K |
|
Signal output |
4~20mA 0.5~4.5VDC 0.5~4.5VDC 0~5VDC 0~10VDC RS485 RS232 |
|
Signal Line Specifications |
2Wire 3Wire 3Wire 3Wire 3Wire 4 Wire 4 Wire |
|
Supply voltage |
9~30VDC 5VDC 9~30VDC 9~30VDC 15~30VD 9~30VDC 9~30VDC |
|
Accuracy |
±0.3%FS⼠0.5%FS |
|
Medium temperature |
-40~＋150℃ |
|
Storage temperature |
-40~＋125℃ |
|
Zero temperature drift |
±0.02%FS/C |
|
Sensitivity temperature drift |
±0.02%FS/'℃ |
|
Zero temperature drift |
±0.02%FS/C |
|
Long-term stability (1 year) |
±0.1%FS |
|
Overload pressure |
300%FS |
|
Response frequency (-3dB) |
3.2kHz |
|
Destruction pressure |
500%FS |
|
Temperature compensation |
-40~+125℃ |
|
Mechanical vibration |
±20g |
|
Ambient temperature |
-40~+85℃ |
|
Shock (11ms ) |
100g |
|
Protection class |
Ip65 |
|
Electromagnetic Compatibility |
EN61000-6 |
|
Material |
17-4PH |
|
Certification Program |
CE RoHS |
|
Pressure port |
M20×1.5G1/4NPT1/4 (others can be customized on request) |
|
Electrical connections |
Direct Lead M12 Connector Hirschmann (Mini) Hirschmann (DIN43650) |
