[Product overview]

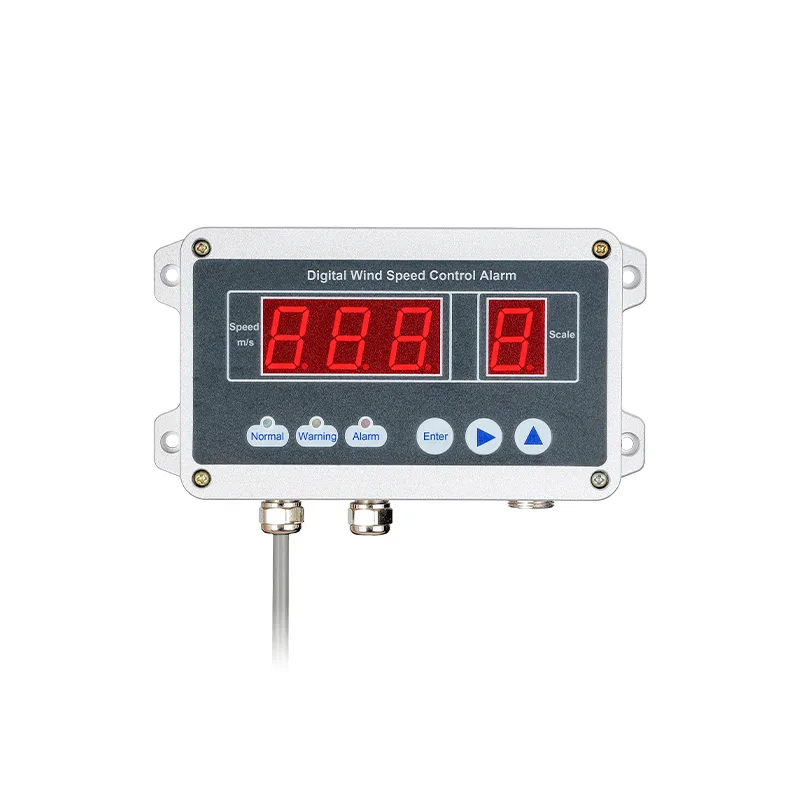

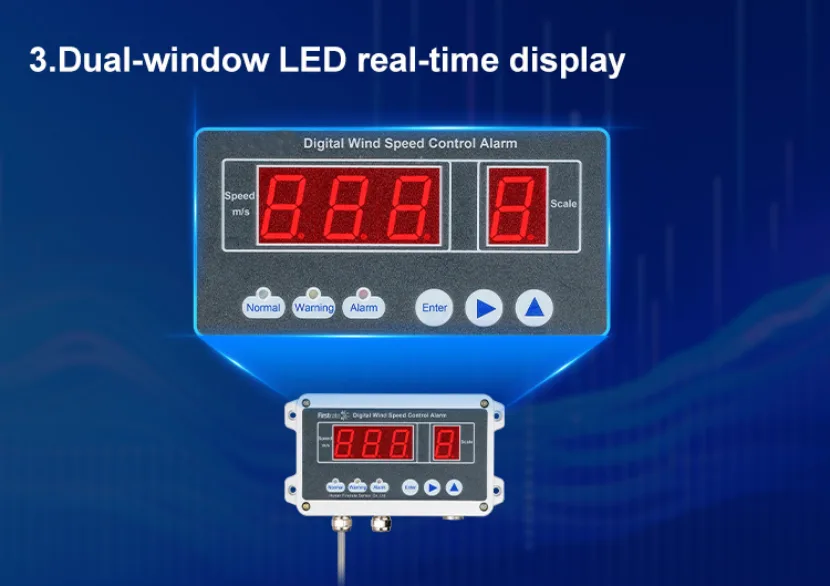

AZIC200-211A High-end Digital Wind Speed Control Alarm, developed based on a microcontroller, measures instantaneous and average wind speed and features display and over-limit alarm functions. Control buttons allow for convenient on-site user setup. It incorporates strong radio frequency and electromagnetic interference protection circuits, offering advantages such as high reliability and high display accuracy. It is suitable for wind speed monitoring in large machinery and equipment such as factories, power plants, ports, mines, and wind turbines.

[Technical indicators]

Supply voltage (optional)	AC: 220 VAC, 110 VAC, 48 VAC DC: 12–30 VDC
External sensor power supply	24 VDC (DC power supply, external supply according to the power supply voltage)
Measurement display range	Wind speed: 0～50 m/s
Display resolution	Wind speed: 0.1 m/s
Display error	Wind speed: 3% FS

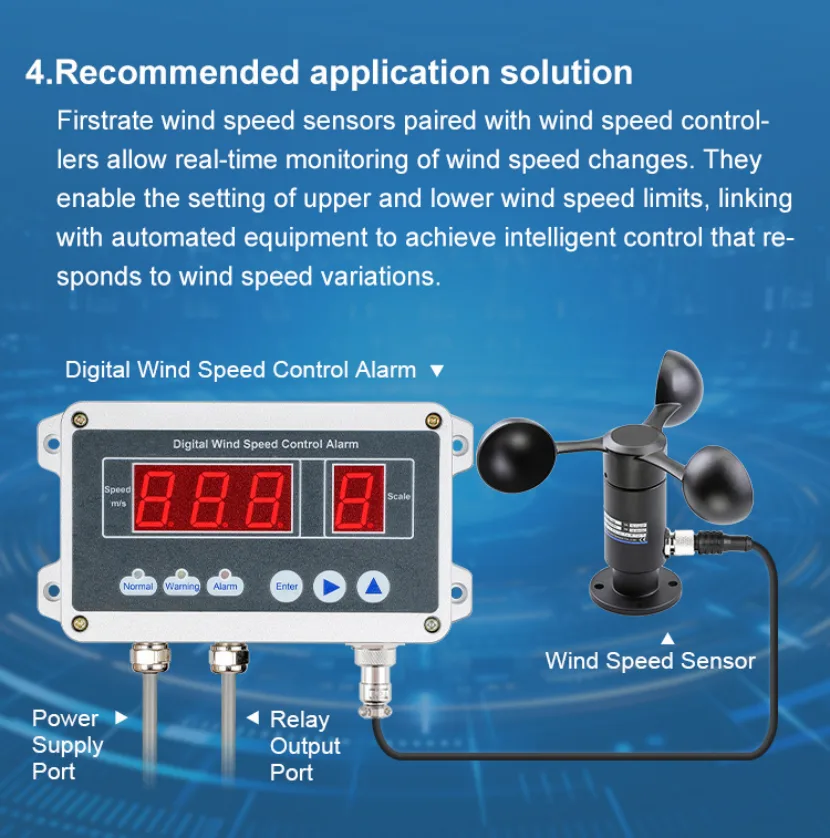

Signal input (optional)	Wind speed: voltage (0–5/10 VDC), current (4–20 mA), pulse

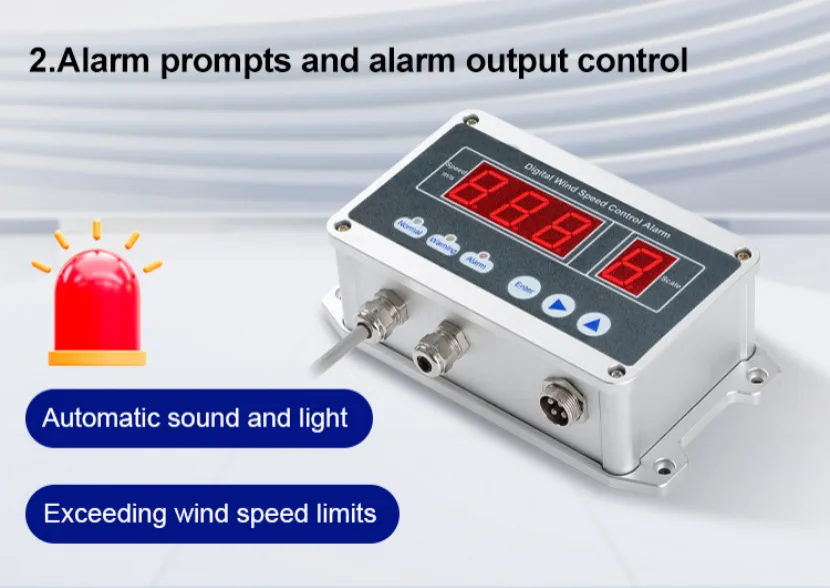

Wind speed alarm output mode (relay contact capacity 220VAC/10A)	Early warning	Relay 1 acts, terminals NO1 and COM1 are connected	When there is no alarm, NC1 and COM1 are connected
	Call the police The buzzer sounds to prompt the sound output;	Relay 1 acts, terminals NO1 and COM1 are connected	When there is no alarm, NC1 and COM1 are connected
		Relay 2 acts, terminals NO2 and COM2 are connected	When there is no alarm, NC2 and COM2 are connected
		The buzzer sounds to prompt the sound output
Protection rating	IP65
Operating temperature	-20°～+60°

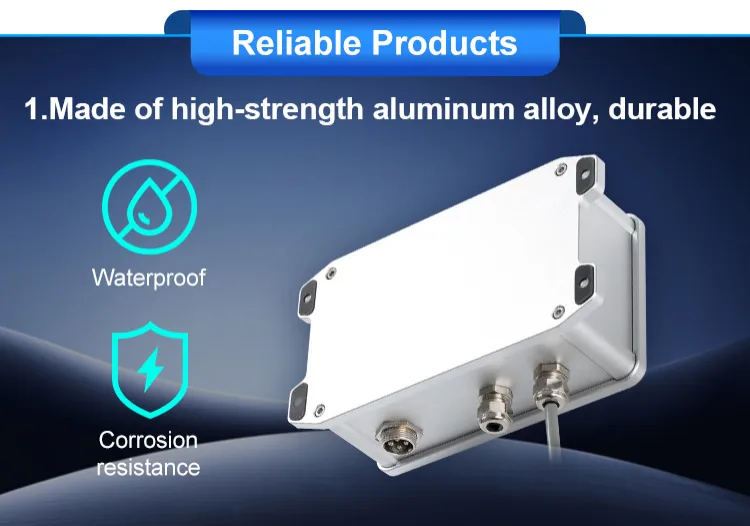

Shell material	Aluminum alloy
Analog signal output	Lout1, Iout2 4 ~ 20mA current loop output, linearly corresponding to the set wind speed and direction range (load < 500Ω)
communication method	RS485 digital communication output
