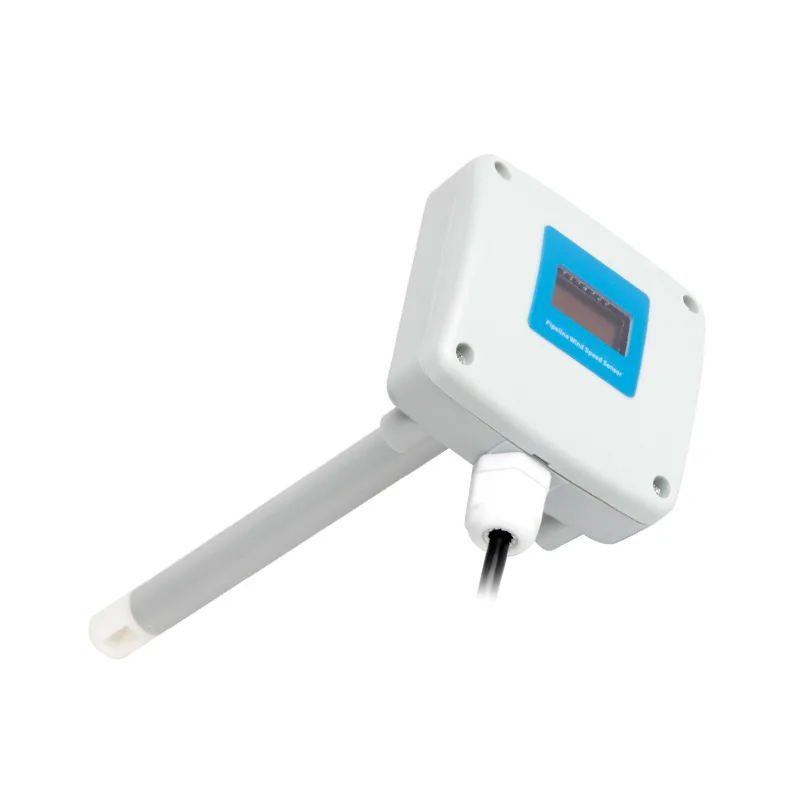

AZIC200-206 Pipe Wind Speed Sensor for HVAC is a high- precision wind speed measurement product with sensitive response.
【Product description】
AZIC200-206 Pipe Wind Speed Sensor for HVAC is a high- precision wind speed measurement product with sensitive response, which can quickly and accurately measure small wind speed, with good stability, small drift and high precision. It is easy to install on site and adopts anti-interference circuit design, which can withstand various strong electromagnetic interference such as on-site frequency converters, electronic, medical environment and other fields of wind speed measurement.
【Scope of application】
● Ventilation ducts, oil fume ducts and other harsh environments
● Wind speed measurement in the fifields of electronics, medical environment, etc.
● Variable air volume system, operating room, clean room, biological laboratory environment
【Technical Parameters】
|
Supply Voltage |
DC12～24V |
|
Average Power Consumption |
<1W |
|
Measuring Range |
0～10m/S / 0～20m/S / 0～30m/S (set by software) |
|
Measurement Accuracy |
(±0.2+2%FS)m/s |
|
Measuring Medium |
Air, nitrogen, oil fume exhaust gas |
|
Output Signal |
4~20mA/0~5V/0~10V/RS485/4G (factory setting) |
|
Working Environment |
-10℃～50℃ |
|
Display Resolution (oled) |
128*64 |
|
Measurement Resolution |
0.01m/S |
