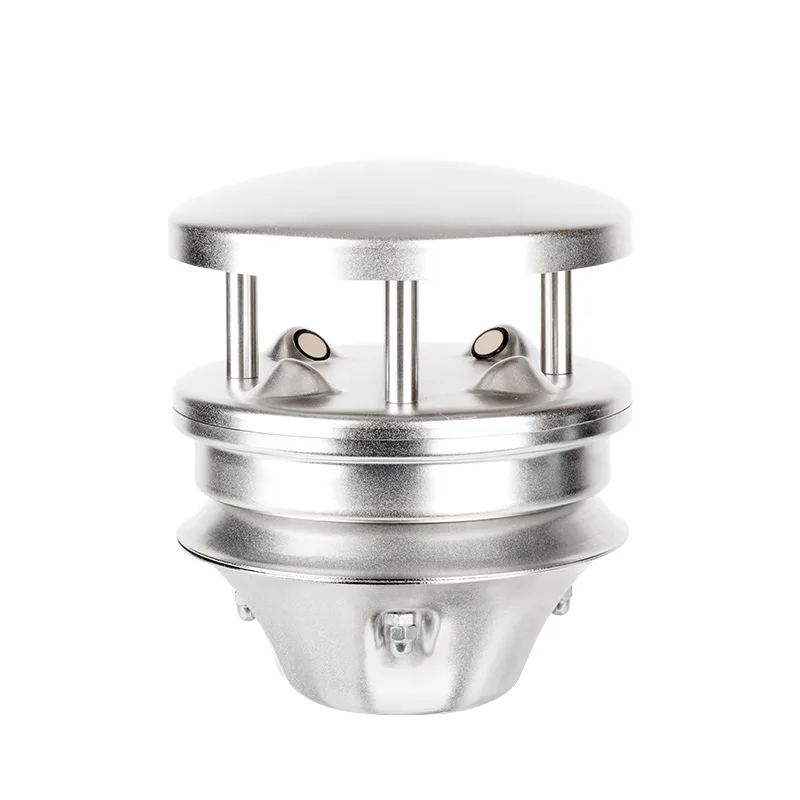

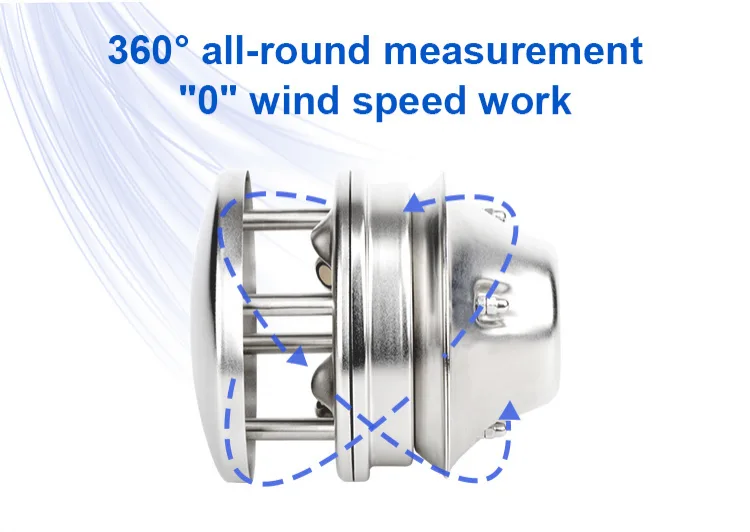

AZIC200-204 ultrasonic wind speed and direction sensor uses the ultrasonic time difference method to measure the wind speed and direction.
【Product Description】
AZIC200-204 ultrasonic wind speed and direction sensor uses the ultrasonic time difference method to measure the wind speed and direction. ultrasonic wind speed and direction sensor has high measurement accuracy, reliable performance, convenient portability, no moving parts, and no maintenance and on-site calibration. It is a more advanced instrument for measuring wind speed and direction.
【Technical Parameters】
|
Wind Speed Parameter |
|
|
Measuring range |
0~60 m/s |
|
Starting wind speed |
0.1m/s |
|
Response time |
1s |
|
Resolution 0.1m/s |
0.1m/s |
|
Accuracy |

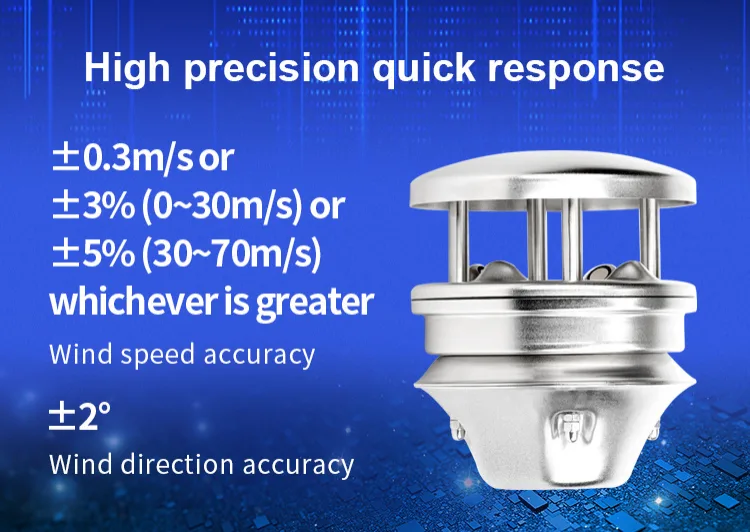

±0.3m/s or ±3% (0-30m/s, whichever is greater) ±5% (30-60m/s) |
|
Wind direction Parameter |
|
|
Measuring range |
0-360° |
|
Accuracy |
±2° |
|
Resolution |
0.1° |
|
Basic parameters |
|
|
Digital signal |
RS485 4-20mA 0-5V |
|
Baud rate |
9600, 19200, 38400, etc. |
|
Power supply |
9-24VDC |
|
Average current |
<35mA (12VDC) |
|
Operating temperature range |
-20~60°C |
|
Operating humidity range |
0~95%RH |
|

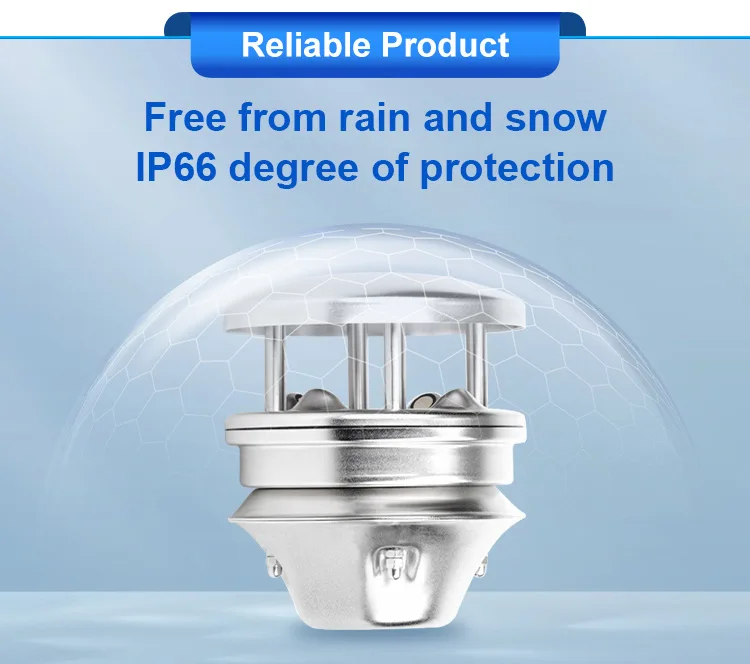

IP Grade |
IP66 |
