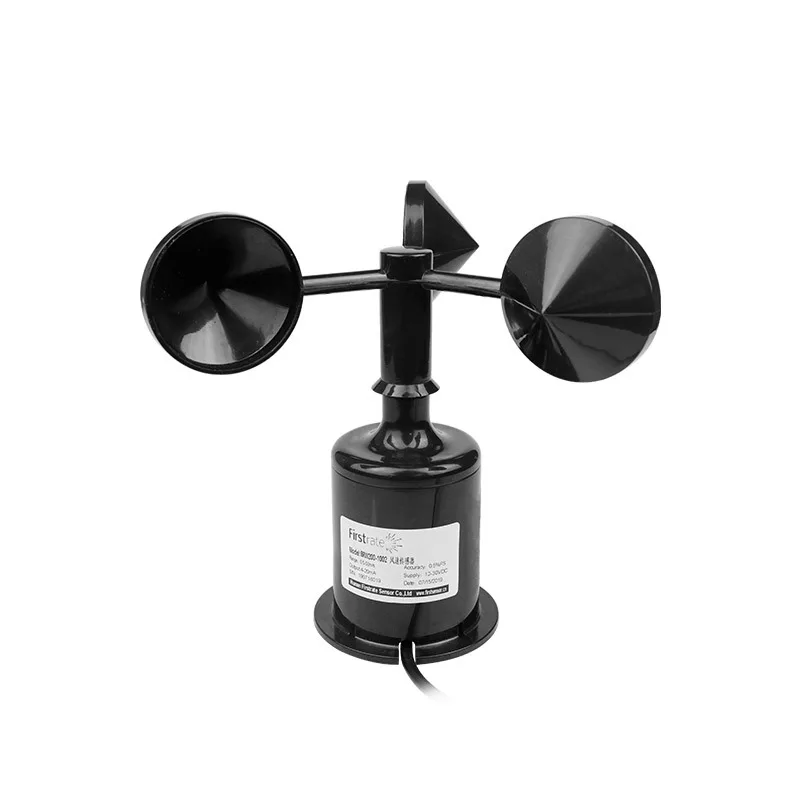

AZIC200-1002 Plastic RS485 Modbus Cup Wind Speed Sensor is a wind speed sensor with high reliability and high performance.
【Product Description】
AZIC200-1002 Plastic RS485 Modbus Cup Wind Speed Sensor is a wind speed sensor with high reliability and high performance. This series of sensors can stably and accurately collect environmental wind speed signals, and is suitable for high-altitude operations, construction machinery, port machinery and other occasions.
【Features】
● Developed based on the principle of non-contact magnetic sensor measurement.
● Built-in high-performance sensor, the collected data has high precision and high reliability.
● Wide wind speed measurement range, low starting wind speed.
● The wind speed sensor adopts PC+nylon shell, which has good corrosion resistance and strong wind resistance.
● The circuit protection adopts a fault-tolerant design, and the sensor will not be damaged in the case of wrong wiring.
● Comply with CE EMC standard, multi-level lightning protection and anti-surge design.
● Can work in a wide voltage range of 12-30VDC
【Technical Parameters】
|
Operating Voltage |
12-30VDC |
|
Output signal |
4-20mA，0-5VDC，Rs485 |
|
Measuring range |
0.5~50m/S |
|
Aerodynamic wind speed |
≤0.5m/s |
|
Precision |
±0.5m/S（＜5m/s）;±3%FS（≥5m/s） |
|
Operating temperature |
-20°C~+85°C, humidity 0%~95% (no condensation) |
|
Material |
Polycarbonate |
|
Protection level |
IP65 |
