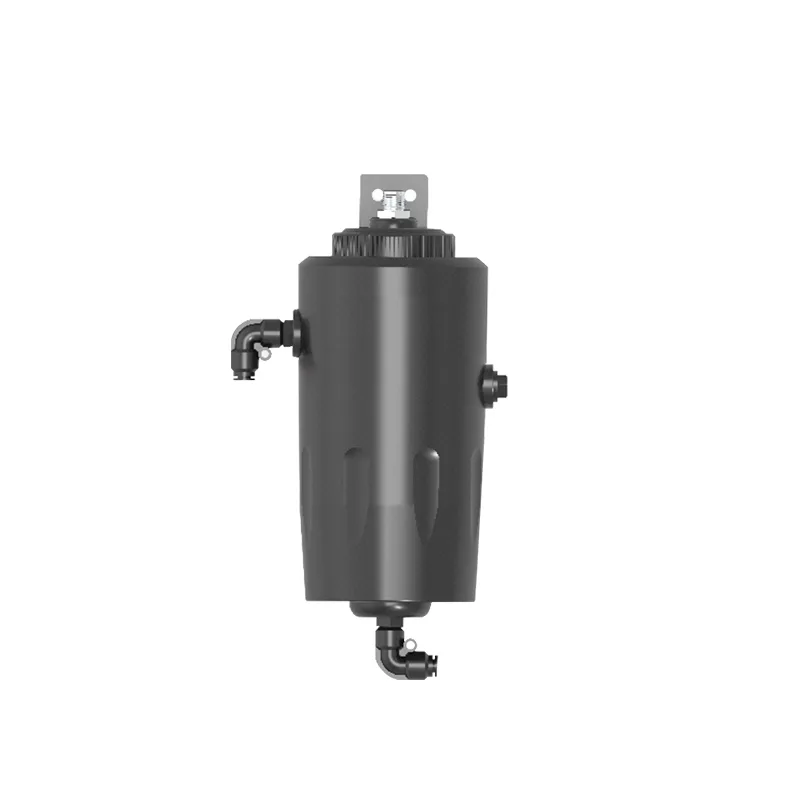

AZIC100-ZD101 Smart Turbidity Sensors measure all suspended particles in water and are used to assess water clarity and particulate contamination.
[Product Overview]
AZIC100-ZD101 Smart Turbidity Sensors measure the number and size of suspended particles in water and are used to assess water clarity and particulate contamination. They play a key role in drinking water treatment, environmental monitoring, and river flow measurement.
[Product Features]
● Flow-through installation
● POM housing material
● Laser (optical) measurement principle
● Digital sensor, RS-485 interface, Modbus/RTU protocol
[Application Scope]
Laser turbidity sensors are widely used in water quality monitoring institutions such as water plants, sewage treatment plants, the food industry, aquaculture, and environmental monitoring stations.
[Technical Parameters]
|
Measuring range |
0~20 NTU (customizable) |
|
Accuracy |
>1 NTU 4% reading or ≤1 NTU ±0.04 NTU |
|
Output |
4~20mA and RS485 |
|
Power supply |
9–30 VDC (12 VDC recommended) |
|
Resolution |
0.0001NTU |
|
Operating temperature |
0~60℃ |
|
Case material |
ABS |
|
Installation method |
Flow-through |
|
Signal line length |
5 m (customizable) |
|
Protection level |
IP68 |
|
Operating pressure |
＜0.1MPa |
|
Calibration method |
Multi-point calibration |
