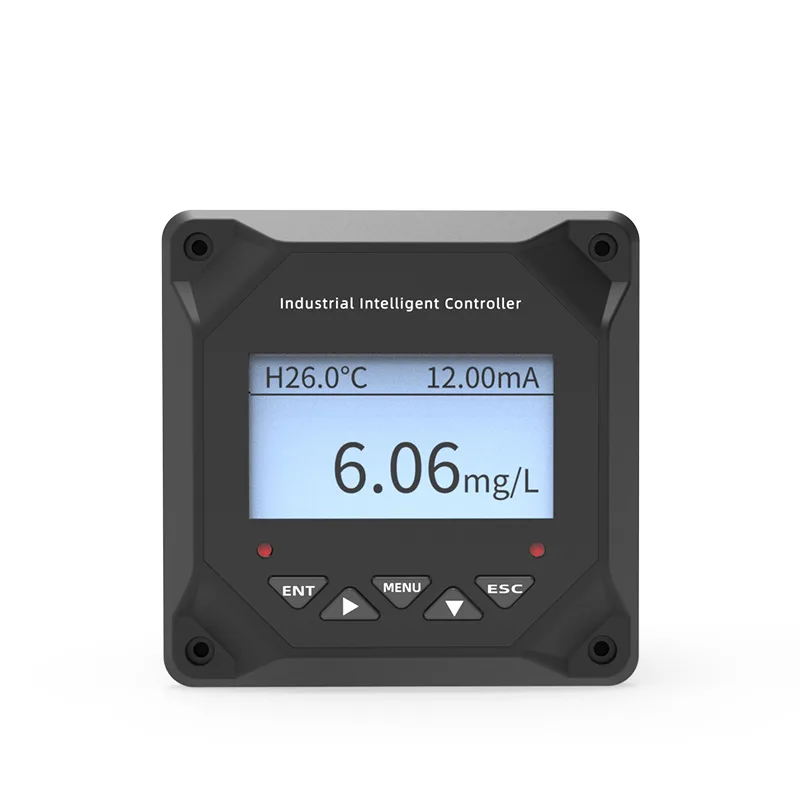

AZIC100-EC1000 Conductivity Controller meter is widely used in thermal power, chemical fertilizer, metallurgy, environmental protection.
[Product overview]
AZIC100-EC1000 Conductivity Controller meter is widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, and tap water industries. Mainly conducts continuous monitoring of conductivity/total dissolved solids/resistivity and temperature in the solution.
【Features】
● Using (4~20) mA isolated transmission output, it is less affected by interference;
● It adopts isolated RS485 communication and can be easily connected to the computer through the Modbus-RTU protocol;
● It has manual and automatic temperature compensation functions;
● It has the function of setting high and low alarms and hysteresis;
● It has the functions of setting the buzzer and LCD backlight switch.
[ Technical indicators]
|
Show |
2.8-inch monochrome LCD display, resolution 128*64 |
|
Size |
Overall dimensions: 100mm*100mm*150.5mm (H*W*D)
Opening size: 92.5mm*92.5mm (H*W) |
|
Measured variables |
EC/TDS/ER |
|
Measuring range |
Controller measurement range: (not recommended for use in pure water applications below 1 μS/cm)
0.01 Electrode: (0 ~ 20.00)μS/cm or (0.05 ~ 20.00)MΩ·cm
0.1 electrode: (0.20 ~ 200.0)μS/cm
1.0 electrode: (2.00 ~ 2000)μS/cm, up to 20000 μS/cm
10.0 electrode: (0.02 ~ 20.00) mS/cm
Temperature measurement range: (-10 ~ 130) ℃ |
|
Temperature compensation |
NTC10K/PT1000 automatic temperature compensation/manual temperature compensation |
|
Accuracy level |
Level 2.0 |
|
Basic error of electronic unit |
EC/TDS/ER: ±1%FS; NTC10K: ±0.3℃; PT1000: ±0.3℃; |
|
Current output |
Isolated type, (4 ~ 20) mA can be set to correspond to EC/TDS/ER measurement range, maximum load 750Ω, output accuracy ±0.2%FS |
|
RS485 output |
Isolated, Modbus-RTU communication protocol |
|
Alarm function |
2-way relay, 250VAC/3A |
|
Relative humidity |
(10 ~ 85)% (no condensation) |
|
Working temperature |
(0 ~ 60)℃ |
|
Power supply |
AC: 220VAC±10% 50Hz/60Hz
DC: 24VDC±20% input power ≥6W |
|
Transportation and storage conditions |
Temperature: (-15 ~ 65)℃; Relative humidity: (5 ~ 95)% (no condensation) |
