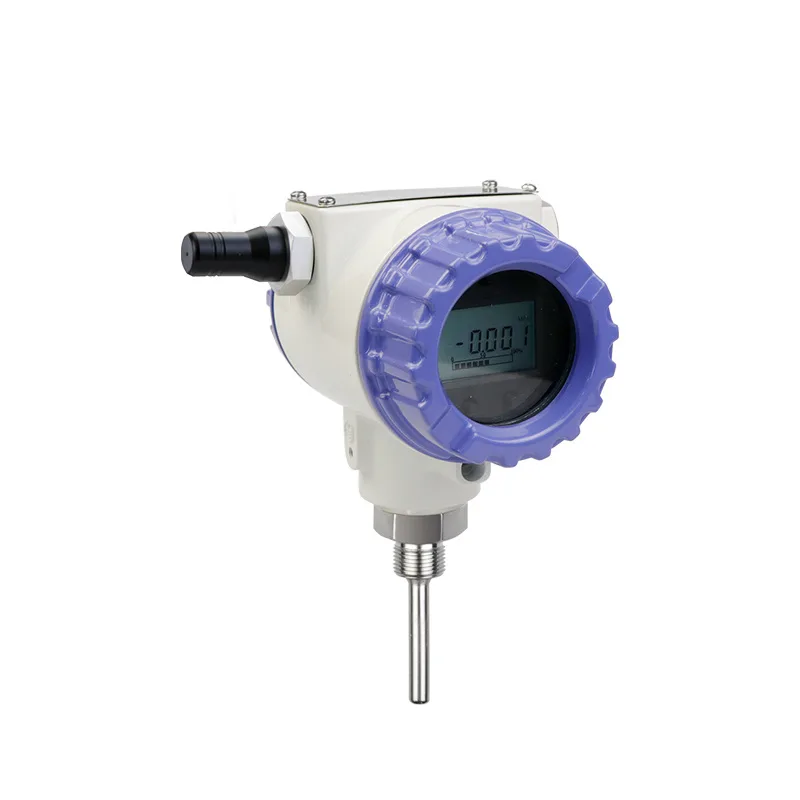

AZIC100-6101 Wireless Temperature Sensor adopts 4G/4G-CAT1/LoRa/NB-IoT network to realize Wireless transmission of monitoring data to the cloud.
【Product Description】
AZIC100-6101 Wireless Temperature Sensor uses high-quality sensitive temperature measurement devices, and is also equipped with ultra-low power microprocessor and high-precision sensor signal conditioning circuit as a whole. It adopts 4G/4G-CAT1/LoRa/NB-IoT communication network to realize on-site Wireless transmission of monitoring data to the cloud. Customers can obtain measurement data by logging in to the relevant website through the Internet PC or mobile terminal, and realize the statistics and analysis of the collected data, and form reports and data curves, which are intuitive, accurate and efficient. This product is mainly used in water supply pipe network, gas supply pipe network, oil supply pipe network, environment, medical and health, manufacturing, chemical industry, energy, meteorology, storage, cold storage, freezer and high-voltage power transmission temperature monitoring and other fields.
【Features】
● Industrial process detection and control
● Cooling and heating system
● Automatic system temperature measurement and control
● Unattended and dangerous areas
|
Measuring range |
-50~400℃, LCD display (optional), measuring range> 120℃, using isolated type |
|
|
Transfer method |
4G/4G-CAT1/LoRa/NB-IoT，LoRa Working frequency band: 470MHz/868MHz |
|
|
Protocol |
MQTT protocol：4G/NB-IoT;LWM2M protocol：NB-IoT；LoRaWAN protocol： |
|
|
Power supply |
3.6V battery power supply or 12~30VDC external power supply |
|
|
Power consumption current |
4G/NB-IoT |
LoRaWAN |
|
Upload frequency |
5-1440 minutes can be set |
|
|
Precision |
±0.5%FS、1%FS |
|
|
Battery capacity |
8000mAh |
|
|
Withstand voltage |
Typical：40bar（Max：300bar） |
|
|
Ambient temperature |
-20~60℃，0%~80%RH |
|
|
Protection level |
IP65 |
|
|
Material |
304, aluminum die casting |
|
|
Installation interface |
M20*1.5 G1/4 (others need to be customized) |
|
|
Sampling frequency |
10-3600s can be set, 10s~12h can be set (default 10s) |
|
|
Transmission distance |
Depending on signal strength |
|
