【Product description】

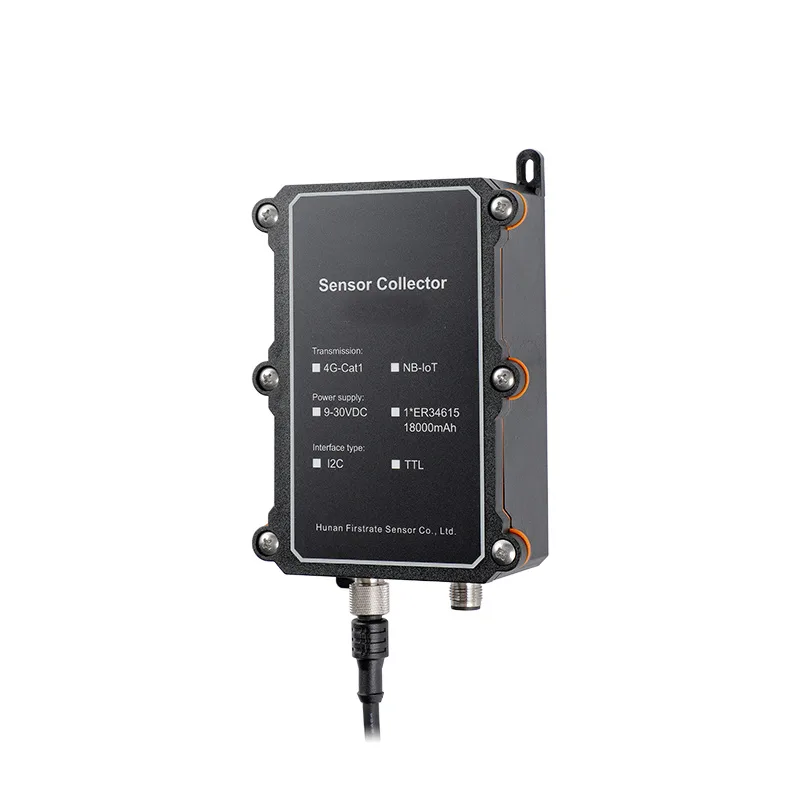

AZIC100-321 Low Power Consumption Intelligent Data Acquisition Terminal is a terminal device for remote data acquisition and control, offering data collection, data transmission, and remote control functions. It can be widely used in industrial automation, energy management, environmental, geological, and hydrological monitoring. It is available in multiple versions, including NB-IoT, CAT-M, and 4G-CAT1 wireless transmission methods. It defaults to a disposable lithium-ion battery and supports various power supply options, including a 24VDC external power supply and solar power combined with a rechargeable battery. It also offers both internal and external antenna options to meet the needs of diverse application scenarios.

【Scope of application】

● Low-power design.
● Supports external 3.6V/5V/9V/12V DC power supply.
● Integrated analog input, digital input/output, serial port, Bluetooth, and other communication interfaces.
● The device includes practical functions such as data upload, alarm event upload, and historical data storage.
● Built-in watchdog timer enhances device stability.
● Wireless remote and online firmware upgrade capabilities facilitate firmware upgrades and remote maintenance.

【Technical Parameters】

Networkstandard	NB-IoT、CAT-M
	4G-CAT1
	LoraWAN (470-510MHz) (Multiple frequency bands available: RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4)
Power supply	DC3.6V 8000mAh (outdoor type, small black case) / DC3.6V 12000mAh (outdoor type, small black case)
	DC3.6V 19000mAh (outdoor type, large black case) / DC3.6V 38000mAh (outdoor type, large black case)
	9-24V DC power supply
	9-24V DC charging, built-in 6000mAh rechargeable lithium battery
	Solar version, built-in 6000mAh rechargeable lithium battery
Operating environment	Ambient temperature -30°C to +70°C, relative humidity ≤95%
GNSS	Waterproof rating IP68
IoT platform	GPS/Beidou (optional)
Applicable regions	Azure, AEP, AWS, etc.
Communication protocol(Operating Mode)	Asia, Europe, etc.; please specify when ordering for other regions
Hardware/communication interface	►1 magnetic connector for activation and power on/off operation ►2 AI channels, supporting analog signals 4-20mA, 0-5V, 0-10V, etc. ►2 DI channels, supporting dry contact input ►1 water immersion input, requires our water immersion probe ►2 DO channels, default 3.6V active output (≤5mA when battery powered). Please specify if other voltage amplitudes are required when ordering. ►RS485 input, supports Modbus_RTU protocol, supports up to 10 RS485 sensors simultaneously.
