【Product Description】

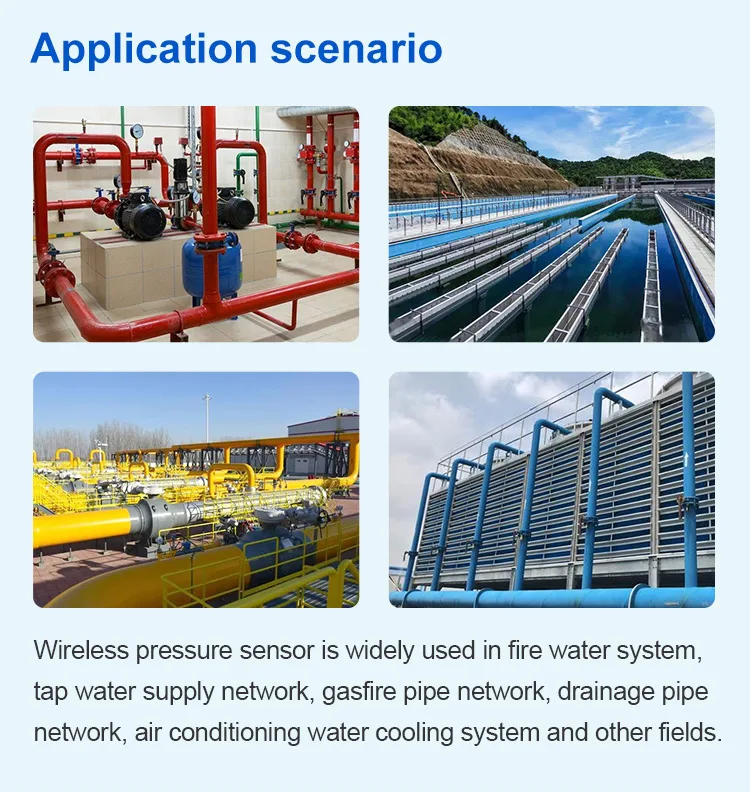

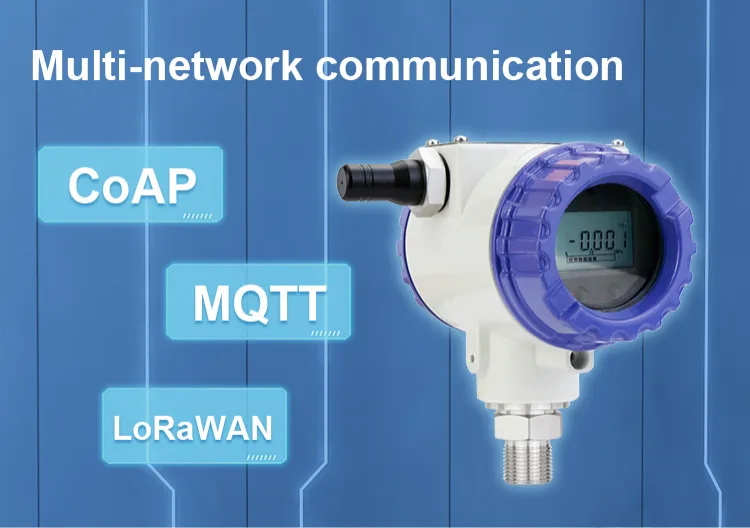

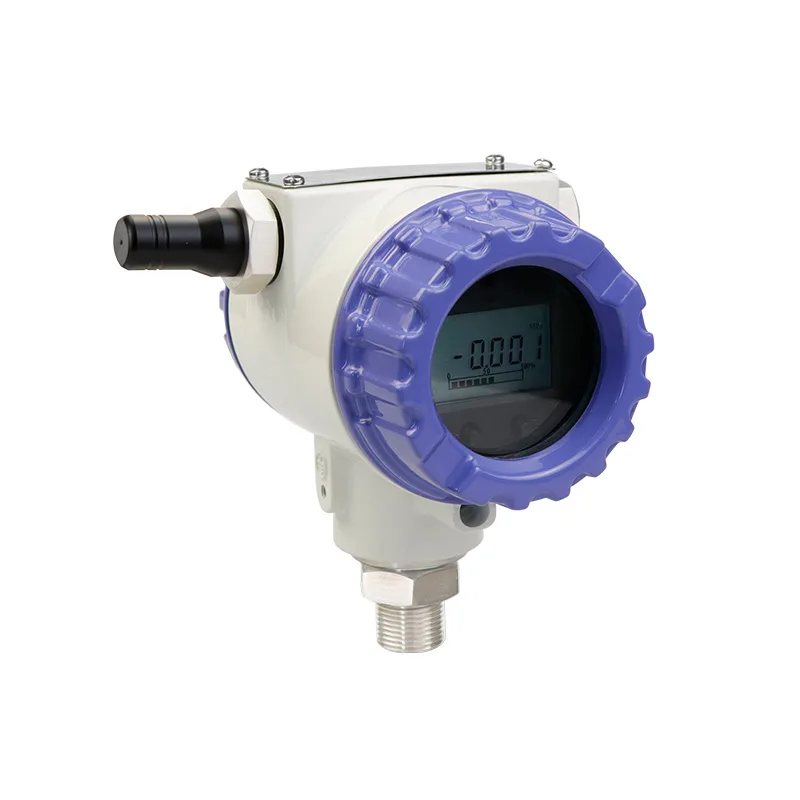

AZIC100-1101 wireless pressure sensor adopts high-quality imported pressure-sensitive core, and is also equipped with ultra-low-power microprocessor and high-precision sensor signal conditioning circuit. It adopts 4G/LoRaWAN/NB-IoT communication network to realize on-site monitoring data to Wireless transmission in the cloud. Customers can obtain the measurement data by logging in to the relevant website through the Internet PC or mobile terminal, and realize the statistics and analysis of the collected data to form reports and data curves, which are intuitive, accurate and efficient. This product is mainly used in unattended, such as pressure monitoring of oil, gas, heating, water and fire pipelines and automatic control in industrial fields.

【Features】

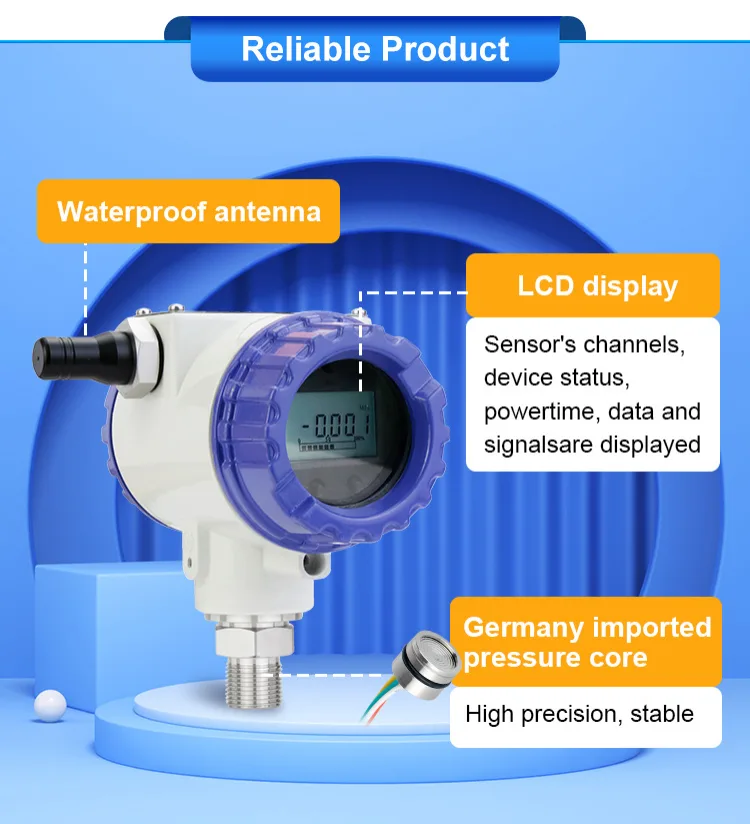

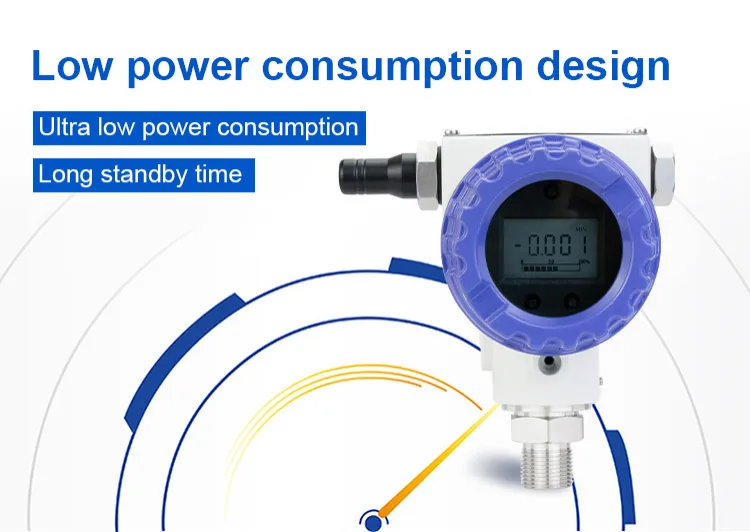

● Low power consumption design, on-site segment LCD display

● Moisture-proof, anti-condensation, anti-leakage, protection grade IP65

● Excellent impact resistance, overload resistance, vibration resistance and corrosion resistance;

● Efficient lightning protection, strong resistance to radio frequency and electromagnetic interference protection

● Advanced temperature digital compensation function, using digital compensation and nonlinear correction technology

● -10℃～80℃ digital wide temperature compensation, wide working temperature range

● High precision, high frequency response, good long-term stability

● On-site pressure data can be wirelessly transmitted to the cloud platform, which facilitates uploading of remote monitoring data to the cloud platform

【Technical Parameters】

Measuring medium	water, Gas, Oil
Measurement range	-100kPa~0~20kPa...60MPa
Power supply voltage	3.6V battery power supply 12~30VDC external power supply
Accuracy	±0.5 %FS ±1%FS
Temperature compensation	-10~+70℃
Working temperature	-20~+60℃
Long-term stability (1 year)	≤0.2%FS
Overload pressure	200%FS
Working frequency band	470MHz/868MHz
Sampling frequency	10s~12h can be set (default 10s)
Sending frequency	1min~1440min can be set (default 2min)
Communication Protocol	Private Protocol/LoRaWAN (Class A, OTAA Mode Activation)
Protection grade	IP65
Housing Material	Aluminum Die Casting, 304 stainless steel
Pressure interface	M20x1.5, G1/4 or other threads
Power consumption current	Sleep current: <5uA, sampling current: <5mA
Power consumption current	Transmit current: <140mA, receiving current: <20mA
Battery capacity	12000mAh

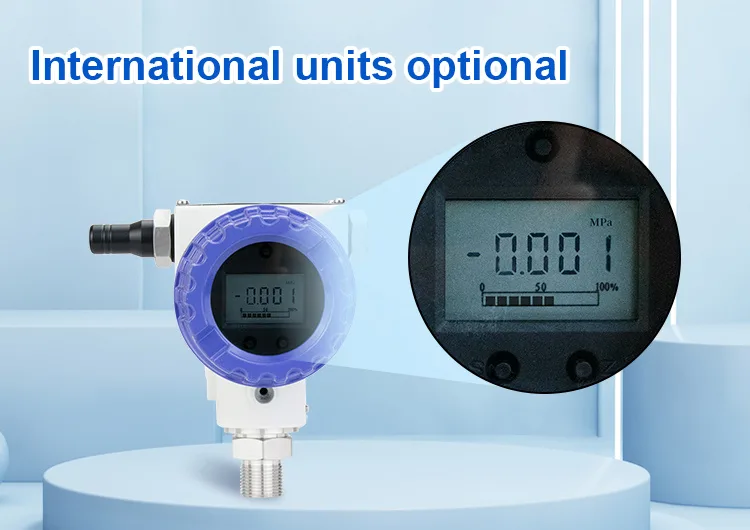

Display mode	6-segment LCD display
Storage environment	Temperature -40~+80°C, humidity: 0~95%RH
