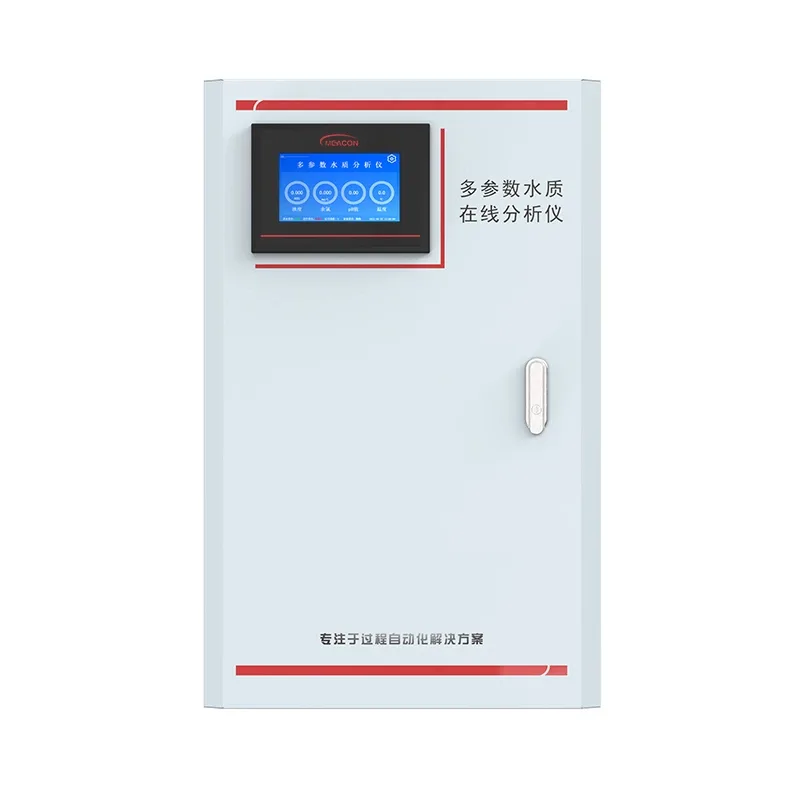

AZIC-MPP101 Multi-parameter analyzer can be widely used in urban or rural water supply plants, tap water pipeline networks, tap water secondary supply.
AZIC-MPP101 Multi-parameter analyzer can be widely used in urban or rural water supply plants, tap water pipeline networks, tap water secondary water supply, user taps, indoor swimming pools, online monitoring of water quality such as large-scale water purification equipment and direct drinking water is an indispensable online analysis equipment in the fields of water plant production process control, water conservancy and water management, and sanitation supervision.
Characteristics
pH / ORP: 0-14 pH, ±2000 mV
Turbidity: 0-1 NTU / 0-20 NTU / 0-100 NTU / 0-4000 NTU
Conductivity: 1-2000 μS/cm / 1~200 mS/m
Dissolved oxygen: 0-20 mg/L
Introduction
The multi-parameter analyzer can be widely used in urban or rural water supply plants, tap water pipeline networks, tap water secondary water supply, user taps, indoor swimming pools, and online monitoring of water quality, such as large-scale water purification equipment and direct drinking water. It is an indispensable online analysis equipment in the fields of water plant production process control, water conservancy and water management, and sanitation supervision.
Specification
|
Item |
Index |
Value |
|
System |
working power |
(220±22)VAC, (50±1)Hz |
|
Power |
30W |
|
|
Cabinet size |
800mm*506mm*180mm (standard version) |
|
|
Weight |
About 15 kg |
|
|
Storage temperature |
4℃~+50℃ |
|
|
Working temperature |
4℃ ~ +50℃ / -25℃ ~ +50℃ (optional temperature control heating antifreeze module) |
|
|
Working humidity |
≤95% RH (no condensation) |
|
|
Inlet flow |
500–1000 mL/min |
|
|
Inlet pressure |
< 3kg/cm³ |
|
|
Communication interface |
RS485 Modbus RTU communication protocol + wireless interface |
|
|
Turbidity |
Range |
0-1 NTU / 0-20 NTU / 0-100 NTU / 0-4000 NTU |
|
Resolution |
0-1NTU / 0-20NTU / 0-100NTU:0.001NTU 0-4000NTU:0.01NTU |
|
|
Lower detection limit |
0.02 NTU; 0.1 NTU (0–4000 NTU) |
|
|
Zero drift |
≤1.5% |
|
|
Indication stability |
≤1.5% |
|
|
Accuracy |
2% or ±0.02 NTU; 5% or 0.5 NTU (0–4000 NTU) |
|
|
Repeatability |
≤3% |
|
|
Response time |
T90 ≤ 120 s |
|
|
Recommended maintenance period |
3–12 months (depending on the water quality on site) |
|
|
Residual chlorine/chlorine dioxide |
Range |
0-5 mg/L / 0-20 mg/L |
|
Resolution |
0.01 mg/L |
|
|
Lower detection limit |
0.05 mg/L |
|
|
Accuracy |
±0.05 mg/L or ±5% (DPD comparison error ±10%) |
|
|
Response time |
≤120 seconds |
|
|
Recommended maintenance period |
1–3 months or weekly calibration, 3–6 months to replace consumables |
|
|
pH /ORP (optional) |
Range |
0-14 pH, ±2000 mV (ORP) |
|
Resolution |
0.01 pH, ±1 mV (ORP) |
|
|
Accuracy |
±0.1 pH, ±20 mV (ORP), or ±2% |
|
|
Repeatability |
±0.1 pH, ±10 mV (ORP) |
|
|
Response time |
≤60 seconds |
|
|
Recommended maintenance period |
1–3 months |
|
|
Temperature |
Range |
0℃ - 50℃ |
|
Resolution |
0.1℃ |
|
|
Accuracy |
±0.5℃ |
|
|
Repeatability |
≤0.5℃ |
|
|
Response time |
≤25 seconds |
|
|
Recommended maintenance period |
12 months |
|
|
Conductivity (Optional) |
Range |
0–2000 μS/cm |
|
Accuracy |
±1.5%FS |
|
|
Repeatability |
≤0.5%FS |
|
|
Response time |
≤30 seconds |
|
|
Recommended maintenance period |
3–6 months |
|
|
Dissolved oxygen (Optional) |
Range |
0–20 mg/L |
|
Accuracy |
±0.3 mg/L |
|
|
Repeatability |
≤±1.5% |
|
|
Response time |
≤30 seconds |
|
|
Recommended maintenance period |
1–3 months |
|
|
Expansion port |
Port type |
RS485, 4–20mA |
